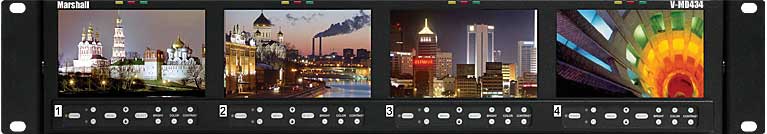

Marshall Electronics V-MD434-3GSDI
Four 4.3" Widescreen Monitors Rack Unit (with 3G/HD/SDI Inputs)

OUR PART #:  V-MD434-3GSDI

Marshall Electronics V-MD434 rack mount monitor unit offers a flexible modular solution to system integration.
Learn More
Our Price: $3,861.25
List Price: $4,543.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Marshall Electronics V-MD434-3GSDI
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Marshall Electronics V-MD434 rack mount monitor unit offers a flexible modular solution to system integration.  The monitor can be configured with a variety of video inputs that can be "swapped" or interchanged in the field based on your evolving needs and requirements.  This eliminates the need to upgrade or replace equipment when a different input or application is required.  This "future proof" solution provides flexibility and reassurance when necessary, especially in multi-monitor rack mount units.

The V-MD434 includes Composite and Component loop-through, Status Display, False Color Filter, Markers, Freeze Function, Color Temperature Presets, RGB Gain / Bias Adjust, Pixel-to-Pixel, Blue Gun, Hard Tally, user-definable function buttons, and more.  A variety of modules are available, including 3G/HD/SDI with loop-through, Fiber-Optic input/output modules, and more.

The V-MD434 can be used as a standalone monitor without the rack ears attached or mounted in any standard EIA 19" equipment rack.  The attached rack ears can be angled to provide the user control over the viewing angle.  A VESA standard 75mm hole pattern also allows custom mounting installations.

The MD Series monitors integrate Telecast Fiber System's TeleCubeTM Fiber-Optic HD/SDI transmission input/output modules.  These new fiber modules deliver the industry's broadest range of digital rates while maintaining pristine signal quality that broadcasters and integrators demand.

With broadcast production facilities looking to the future with 3Gb/s SDI integration, Marshall fills the void with new fully-featured, high-end monitors with full 3G/HD/SD support.  For distances beyond 150 meters, fiber-optic signalling may be required.  To fulfill this need, Marshall looked to Telecast Fiber Systems, the company that developed fiber-optic video technology for television broadcast production. Telecast's comprehensive systems are used worldwide.

Specifications:

  • Display (viewing area): 4.3" x 4
  • Resolution (Pixels): 800 x 480
  • Aspect Ratio: 16:9
  • Brightness (in cd/m²): 200
  • Contrast Ratio: 400:1
  • Standard Inputs (included): Composite, component
  • Available number of input module slots: 1 per screen
  • Dimensions: 17.1" W x 3.45" H x 1.23" D
