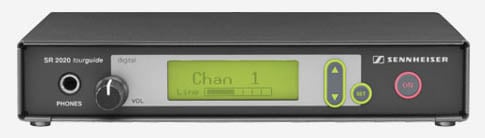

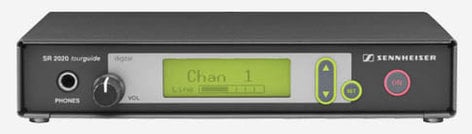

Sennheiser SR2020-D-US
Single Channel Transmitter, Rackmount

OUR PART #  SR2020-D-US

Our Price: $949.95
List Price: $1,199.00
You save 21%! (Low Price Guarantee)
In Stock

Rack-mountable transmitter (926 - 928 MHz), single channel with up to eight selectable channels. Includes NT2-1-US power supply and GA2 rack adapter.

Sennheiser SR2020-D-US Features:

  • Up to 8 available channels in the license-free ISM band
  • Intuitive configuration menu
  • Backlit display indicates selected channel and microphone or line level
  • Balanced XLR-3F input, switchable mic/line
  • Switchable 48V phantom powering supports professiona lcondenser mics
  • 1/4" (6.3 mm) headphone socket for front-panel monitoring
  • 19" rack-mount kit included

Sennheiser SR2020-D-US Specifications:

  • Current consumption: max 300 mA
  • Dimensions: 8.3 x 5.7 x 1.5 in. (212 x 145 x 38 mm)
  • Input voltage range:
    • 2 V max. (Line)
    • 100 mV max. (Mic)
  • Modulation: 2-FSK
  • Number of channels: 6 / 8
  • Operating temperature: 0 - 50 °C
  • Phantom powering: 48 V
  • Range:
    • Indoor: 164 ft. (50 m)
    • Outdoor: 328 ft. (100 m)
  • RF frequency range: 926 - 928 MHz
  • RF output power: 1 mW
  • Signal-to-noise-ratio: > 70 dB(A)
  • Total harmonic distortion (THD): = 1%
  • Weight: 2.4 lbs. (1.1 kg)

Sennheiser SR2020-D-US
Single Channel Transmitter, Rackmount

OUR PART #  SR2020-D-US

Product Information:

Rack-mountable transmitter (926 - 928 MHz), single channel with up to eight selectable channels. Includes NT2-1-US power supply and GA2 rack adapter.

Sennheiser SR2020-D-US Features:

  • Up to 8 available channels in the license-free ISM band
  • Intuitive configuration menu
  • Backlit display indicates selected channel and microphone or line level
  • Balanced XLR-3F input, switchable mic/line
  • Switchable 48V phantom powering supports professiona lcondenser mics
  • 1/4" (6.3 mm) headphone socket for front-panel monitoring
  • 19" rack-mount kit included

Sennheiser SR2020-D-US Specifications:

  • Current consumption: max 300 mA
  • Dimensions: 8.3 x 5.7 x 1.5 in. (212 x 145 x 38 mm)
  • Input voltage range:
    • 2 V max. (Line)
    • 100 mV max. (Mic)
  • Modulation: 2-FSK
  • Number of channels: 6 / 8
  • Operating temperature: 0 - 50 °C
  • Phantom powering: 48 V
  • Range:
    • Indoor: 164 ft. (50 m)
    • Outdoor: 328 ft. (100 m)
  • RF frequency range: 926 - 928 MHz
  • RF output power: 1 mW
  • Signal-to-noise-ratio: > 70 dB(A)
  • Total harmonic distortion (THD): = 1%
  • Weight: 2.4 lbs. (1.1 kg)
