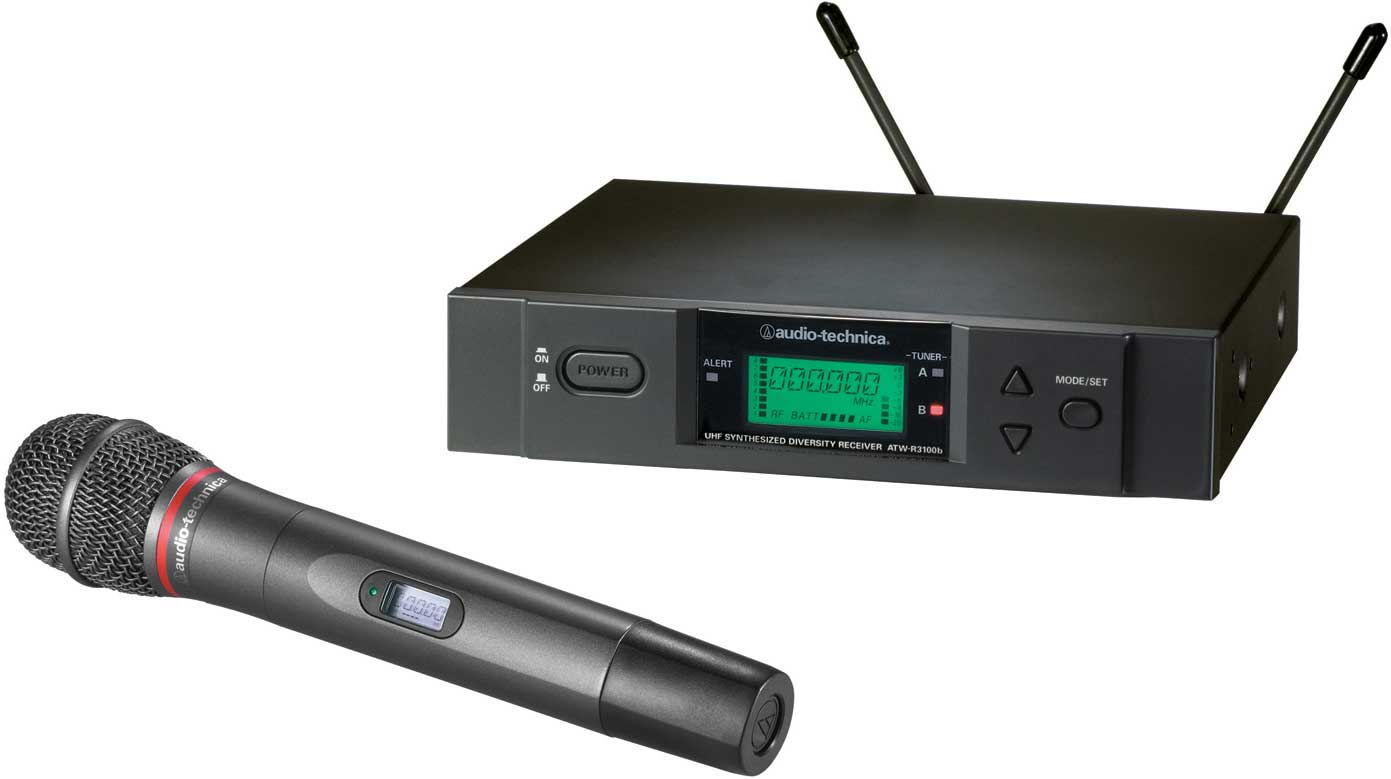

Audio-Technica ATW-3141BD
Wireless UHF Handheld Microphone System, Frequency-Agile, True Diversity, TV44-49

OUR PART #:  ATW-3141BD

Audio-Technica's third-generation 3000 Series wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation.
Learn More
Our Price: $549.00
Call for Special Sale Price!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audio-Technica ATW-3141BD
Qty:
In Stock

Similar Products

Audio-Technica's third-generation 3000 Series wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. AT has simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.

The versatile ATW-T310b UniPak body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter's control panel prevents accidental shut-off or channel-switching. A new locking battery compartment provides a more secure latch and more robust design.

Features

  • 996-1001 UHF frequencies in one of three UHF frequency ranges
  • Antenna power available for powered antennas & other in-line RF devices
  • Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
  • True Diversity operation reduces dropouts
  • Advanced digital Tone Lock squelch effectively blocks stray RF and communicates transmitter data for receiver display
  • Transmitters offer backlit LCD & dual-color LED
  • Locking battery compartment with secure latch and robust design
  • Ground-lift switch helps eliminate audible hum caused by ground loops
  • Balanced and unbalanced audio output jacks

Specifications

  • Operating Frequencies: UHF Band
    Band D: 655.500 MHz to 680.375 MHz (996 frequencies)
    Not all frequencies are available in all areas. Please check with local regulations.
  • Minimum Frequency Step: 25kHz
  • Modulation Mode: FM
  • Maximum Deviation: +/-35kHz
  • Dynamic Range: >110dB (A-weighted), typical
  • Total Harmonic Distortion: <1% (at 1kHz, +/-17.5 kHz deviation)
  • Operating Range: 100m (300') typical, Open range environment with no interfering signals
  • Operating Temperature Range: -5º C to +45º C (23º F to 113º F), Battery and LCD performance may be reduced at very low temperatures
  • Frequency Response: 70Hz to 15kHz (+1 dB, -3 dB)

ATW-R3100b Receiver

  • Receiving System: True diversity
  • Image Rejection: 60dB nominal, 55dB minimum
  • RF Sensitivity: 20 dBuV at 60 dB S/N ratio
  • Maximum Output Level: XLR, balanced: +9dBV; 1/4", unbalanced: +7 dBV
  • Antenna Input: BNC-type, 50 ohms; Bias voltage 12V DC, 60 mA, each
  • Power Requirements: 12-18V DC, 500 mA
  • Dimensions (W x D x H): 8.27" x 6.47" x 1.73" (not including BNC connectors or feet)
  • Net Weight: 38.8 oz, without accessories

ATW-T341b Handheld Microphone/Transmitter

  • RF Power Output: High: 30 mW; Low: 10 mW, (switchable) at 50 ohms
  • Spurious Emissions: Following federal and national regulations
  • Microphone Element: Dynamic Cardioid
  • Batteries: Two 1.5V AA, not included
  • Battery Life: Depending on battery type and use pattern
      -  High: 6 hours (alkaline)
      -  Low: 8 hours (alkaline)
  • Dimensions: 9.33" long x 1.89" diameter
  • Net Weight: 10 oz without batteries

What's Included:

  • (1) ATW-R3100b receiver
  • (1) ATW-T341b Handheld Cardioid Dynamic Microphone/Transmitter
  • (1) AT8456a Quiet-Flex stand clamp
  • (2) Flexible UHF antennas
  • (1) AC adapter (country dependent)
  • (1) Rack-mount adapter kit
