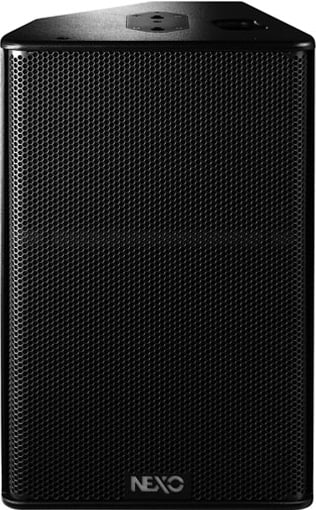

Nexo PS15UL
High-Power 2-Way Full Range Loudspeaker (with Left-Oriented Horn)

OUR PART #:  PS15UL

NOTE: This model is a version of the PS15U-R2 that features its horn on the left in monitor position.
Learn More
Similar Products

NOTE: This model is a version of the PS15U-R2 that features its horn on the left in monitor position.

Nexo's PS15UL Loudspeaker is designed to provide both PA and stage monitor performance from a single product without compromise.  This flexibility is realized by a proprietary constant directivity asymmetrical dispersion horn, easily rotated in four positions by the user.  Coupled with the horn's unique progressive horizontal (50° to 100°) and vertical (55°) dispersion, the most suitable pattern can be selected for vertical or horizontal PA usage or wedge monitoring.  The 2-way passive 8 ohm design uses a single amplifier channel to deliver bi-amped performance for less money, space and complexity.

The PS15UL can be driven with up to 2000 Watts of amplifier power.

System Applications:

  • High-power mid-sized touring, installed PA for clubs, A/V, theater, Houses of Worship, broadcast, etc.
  • High-quality, extremely powerful stage monitoring for A/V, theatere, cabarets, broadcast, etc.
  • Fill-in system for any PA requiring side, down and near-field augmentation.

Features:

  • High-power system (136dB Peak SPL @ 1m) with 15in LF and 2in HF drivers.
  • Rotatable asymmetrical horn and unique cabinet architecture ensure versatility; user-adaptable for both PA and stage monitoring
    applications.
  • Two-way, switchable passive or active design for precise performance-matching to user requirements.
  • Sophisticated control electronics ensure reliable, linear operation.
  • Supported with a full range of mounting and flying accessories.

Specifications:

  • Components:
    - LF 1 x 15" (38 cm) long excursion Neodymium 8 ohm driver
    - HF 1 x 2" throat, 3" Titanium diaphragm compression driver + Low Distortion, Constant Directivity
    - Asymmetrical Dispersion Horn
  • Dimensions: 26.57" H x 17.08" W x 14.48" D (675 x 434 x 368 mm)
  • Weight: 62 lbs (28 kg)
  • Speakon Connectors: 2x4 pole in & loop thru (switch passive to active inside)
  • Construction: Baltic Birch Ply finished with textured black coating
  • Fittings: Handles 2 metal recessed pockets
  • Front Finish: Moulded dark grey metal grille
  • Flying Points: Two plate connecting with external accessories
  • Stand fittings: Built in steel stand fitting (35mm / 1 3/8")
