Audix TM1
Omnidirectional Testing & Measurement Microphone

OUR PART #:  TM1

The Audix TM1 is a 6mm pre-polarized condenser microphone used for test and measurement applications.
Learn More
Our Price: $299.00
List Price: $325.00
You save 8%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Audix TM1
Qty:
In Stock

Similar Products

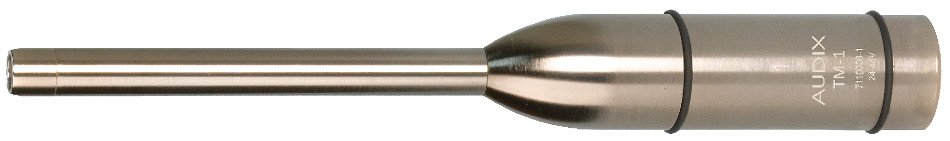

The Audix TM1 is a 6mm pre-polarized condenser microphone used for test and measurement applications. The TM1 is known for its linearity, accurate response, consistency, easy of use and affordability.

Characterized with a uniformly controlled omnidirectional polar pattern, the TM1 is designed to capture acoustic measurements for room analysis software programs, real time analyzers and other sound control devices. With an extremely flat frequency range of 20Hz-25kHz, the TM1 is an excellent tool for sound engineers, sound companies, and recording enthusiasts.

Requiring 18-52V phantom power for operation, the TM1 features a precision machined 4-stage brass body and capsule housing, nickel plate finish, Switchcraft XLR, shock absorbent O-rings, and heavy duty snap to fit mic clip.

Applications:

  • Test and measurement
  • Real time analyzers
  • Room analysis software programs
  • Ambient room micing

Audix TM1 Includes:

  • Heavy duty tension fit mic clip (DCLIP)
  • Carrying Pouch (P1)

Audix TM1 Features:

  • 6mm pre-polarized condenser capsule
  • Linear response
  • Precision machined brass housings
  • Low noise electronics
  • Replaceable electronics and capsule
  • 3 year warranty

Audix TM1 Specifications:

  • Type: Pre-polarized Condenser
  • Frequency Response: 20 Hz - 25 kHz +/-2dB
  • Polar Pattern: Omnidirectional
  • Output Impedance: 200 ohms
  • Sensitivity: 6.5 mV/Pa @ 1k
  • Maximum SPL: 130dB with distortion <1%;140dB Max
  • Signal to Noise Ratio: 66dB
  • Equivalent Noise Level: 28dB (A weighted)
  • Dynamic Range: 112 dB
  • Power Requirements: 18 - 52V phantom power
  • Connector: Switchcraft male XLR
  • Polarity: Positive pressure on diaphragmproduces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Housing: 4 piece precision machined brass
  • Finish: Nickel
  • Length: 5.9"
