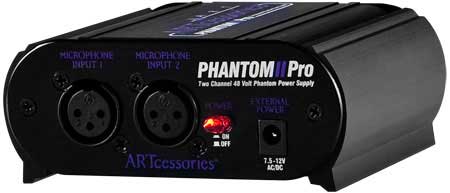

ART PHANTOM-2PRO
Phantom Power Supply, 2 Channel

OUR PART #:  PHANTOM-2PRO

The Phantom II Pro is designed to do one thing and do it well.
Learn More
Our Price: $70.00
List Price: $89.00
You save 21%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART PHANTOM-2PRO
Qty:
In Stock

Similar Products

The Phantom II Pro is designed to do one thing and do it well. It provides clean, reliable phantom power for one or two condenser microphones in a rugged, compact, and portable unit. Innovative low power circuitry generates the higher voltage necessary for powering microphones while maximizing battery life. The Phantom II Pro installs inline between your microphone and a balanced line input on your gear. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used.

The Phantom II Pro is an invaluable tool in application areas including (but not limited to): home or professional recording studios, live sound, PA, permanent installs, DJ, AV, podcasting and broadcasting. Use it with mixers, audio processors, digital audio workstations or anywhere you need phantom power for your mics.

Features

  • XLR connectors for balanced inputs and outputs
  • Low power, high efficiency CMOS circuitry for long battery life using a standard 9V battery (alkaline recommended)
  • Can be powered with an external power supply from AC mains
  • Rugged extruded aluminum case with accessible battery compartment
  • LED lighted On/Off switch
  • Low noise, low distortion circuitry

Specifications

  • Input Connections: Female XLR (2)
  • Output Connections: Male XLR (2)
  • Phantom Power Voltage: 48 volts DC typical
  • Current Limiting Resistors: 6.98k ohms (1%)
  • Power Source: 9V batter (ANSI-1604A type Alkaline recommended) or external 7.5-12V AC/DC, <150mA supply
  • Current Drain: 10mA - no load/45mA - typical (full load - 2 microphones)
  • Battery Life: >10 hours with Alkaline battery - typical (full load)
  • Dimensions (H x W x D): 1.85" x 4.6" x 3.9"
  • Weight: 0.82 lbs
