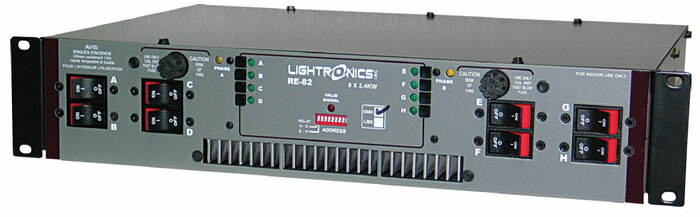

Lightronics RE82D 8-Channel Rack Mount Dimmer with DMX

The RE-82D answers the need for quality and reliability in a basic dimmer. High reliability dual 65 Amp SCRs on each channel carry their 20 Amp load with plenty of power to spare. Efficient fan cooling keeps the temperature low and the reliability high. Individual channel switches allow for fast and convenient lamp testing and focus. LED indicators display individual channel levels, signal presence, and input power status. A DIP switch allows for easily setting the starting channel number, moving in blocks of four. Front panel mounted electronics allow fast and easy replacement should the need ever arise. Relay mode may be activated in blocks of 4 channels on the RE-82D version.

Lightronics Inc. RE-82D Rack Mount Dimmer Features:

• 8 Channels
• 2400 Watts per Channel
• 6 Output Connection Options
• DMX-512 OR LMX-128 Control
• UL-508 Compliant
• Fast Acting Magnetic Circuit Breakers
• Dim/Non-Dim Mode by Channel
• 120/240V 80 Amp

Lightronics Inc. RE-82D Rack Mount Dimmer Specifications:

• Channels/Capacity: 8 @ 2400 Watts each
• Power Input: 2 HOTS of 120VAC Single/Three Phase 80Amps per Hot Input Under Full Load
• Power Connection: Terminal Block
• Overload Protection: 20 Amp Fast Acting CircuitBreakers
• System Addressability: 512/128 Channels (DMX/LMX)
• Cooling: Internal Fan Cooled Heatsink
• Filtering: 350 Microseconds Minimum Rise Time
• Minimum Load: 15 Watts
• Control Sources: DMX-512 (RE-82D); LMX-128 (RE-82L)
• Temperature Rise: 34 Degrees F at Full Load
• Response Time: 8.33 Milliseconds
• Efficiency: 97%
• Size: 19”W x 3.5”H x 13”D
• Weight: 28 Pounds
