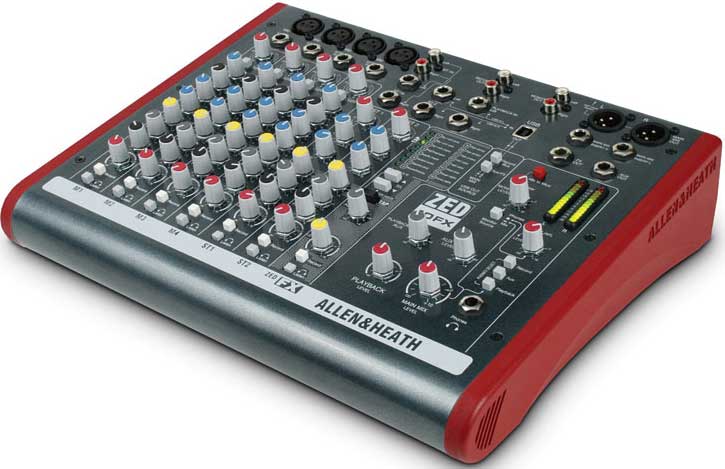

Allen & Heath ZED-10FX
Mixing Console with USB Port and Digital Effects, 4 Mono Channels, 2 Stereo Channels

OUR PART #:  ZED-10FX

The Allen & Heath ZED-10FX is an amazing little desk for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio.
Learn More
Our Price: $299.00
List Price: $329.00
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Allen & Heath ZED-10FX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Allen & Heath ZED-10FX is an amazing little desk for small band mixing. It is ultra portable for carrying to the gig, and can be used for recording live or in the studio. Guitars can be plugged directly to the mixer using the specially designed high-impedance inputs, while the mixer has two stereo inputs for MP3/CD players or keyboards. Equipped with professional XLR main stereo outputs and a flexible monitoring section with headphone and speaker feed outputs. In the FX version, A&H have added a set of effects to give shimmering reverbs and enhance your sound.

ZED's are great for live mixing. Their layout makes them very easy to use and easy to achieve a great sound. They are also perfect for recording, either a live show or an audio project at home can be built up track by track using the USB digital audio interface.

The flexibility and quality of these mixers make them stand out from the crowd. You can plug your guitars or instruments straight into the class A discrete FET high impedance inputs, cater for up to four microphones, two stereo sources with MP3 player compatibility, separate 2-track record outputs and a stereo playback input for 2-track replay or perhaps interval music from a CD player, XLR main stereo outputs with inserts, comprehensive monitoring with headphones and separate monitor speaker outputs, 48V micorphone phantom power, DI level switching for sub mixing, and not least of all, the same digital effects algorithms as those used on A&H's flagship digital consoles costing 150 times as much.

Allen & Heath ZED-10FX Features:

  • Inputs -One of the great things about the ZED series is the number and variety of things you can plug in. In addition to the sixteen mono channels there are two dual stereo channels, each with a main stereo input on jack sockets and with additional inputs on phono sockets. The USB return can be selected to one of the additional inputs so that it feeds either the main LR bus or the stereo channel.
  • Guitar DI -Inplace of the DuoPre, the ZED-10 has pre-amps similar in designe to A&H'sMixWizard range of mixers, but with a twist. Inputs 3 & 4 have a highimpedance jack input capable of taking either a normal line level or a lowlevel input from a guitar pickup. These newly designed inputs have beencrafted with the aim of replicating the sound of a classic guitar or instrument tube pre-amp in a combo or head amp. An extremely high input impedance ensures loading on pickups is minimal and a Class A FET (field effect transistor) circuit powered from 48V is employed to give the valve-like gain stage. There is a gain "Boost" switch associated with the guitar inputs which boosts gain by 26dB to cater for instruments with very low level outputs and the overdrive characteristics of the guitar inputs are very similar to a valve (tube) circuit, being asymmetric and soft. All this makes for a wonderfully natural sound to be reproduced from the instrument, full of warmth and character.
  • EQ Section - Responsive 3-band, sweptmid EQ with MusiQ
  • Auxiliary Sends - 6 aux sends are provided, of which 1 & 2 are prefade for foldback monitoring, and 3 & 4 are switched pre or post-fade for effects sends, and 5 & 6 are post-fade. Auxes 1 & 2 can be sent to the USB bus for recording pre-fade signals independently to the main mix. Auxes 5 & 6 can also be sent to the USB bus for use as effects sends.
  • USB Audio Flexibility - Getting audio to and from a computer easily is now a common requirement for live sound and music production. The way A&H have implemented this on ZED is super-flexible and super-easy. No longer do you need to fiddle around the back of your PC to get the soundcard inputs, only to find that the levels are all wrong and noisy. Just plug in a USB lead to your ZED, select the USB routing on the mixer and the device on your computer and that's it. Quality audio to and from your PC or Mac. Three switches provide different send/return configurations for recording, playback and utilizing external FX.
  • Dimensions(HxWxD): 3.7" x 13.2" x 10.8"
  • Weight: 7.3 lbs
