TOA BA-260 CU 60W Power Amplifier

OUR PART #: BA260CU MFR #: BA-260 CU

Copied to clipboard

The TOA BA-260 is a 60W power amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms. ...Read more

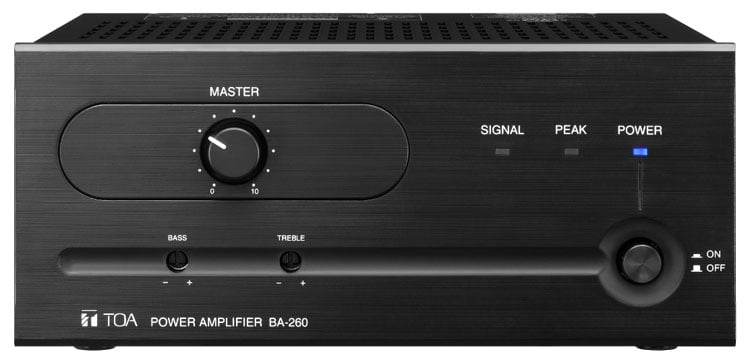

TOA BA-260 CU 60W Power Amplifier Image 1
TOA BA-260 CU 60W Power Amplifier
Our Price: $404.10
List Price: $500.10
You save 19%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The TOA BA-260 is a 60W power amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms. When used in conjunction with the optional mixer amplifier BG-220 (20W) or BG-235 (35W), 2-channel broadcast can be made.

Includes:

  • Volume control cover: YA-920 x1
  • Removable terminal plug (2 pins) x3
  • Removable terminal plug (4 pins) x1

Features:

  • Targets simple BGM applications using a single audio source without paging or MOH requirements.
  • Remote master volume control.
  • RCA pin jack line input.
  • Thermal protection circuits shut down to protect system should overheating occur.
  • Accessory security knobs for volume control prevent unauthorized volume setting changes.
  • Rack-mount kit options.
  • UL / cUL listed.
  • Five-Year Warranty.

Specifications:

  • Power Source: 120VAC
  • Rated Output: 60W
  • Power Consumption: 130W (rated output)
  • Frequency Response: 50Hz - 20kHz
  • Total Harmonic Distortion: 0.5% or less
  • Input: Line In: 0dB* / +4dB* (selectable) removable terminal block or RCA jack
  • Output: Speaker: 4Ω balanced, Bridge: parallel in Line in
  • Output Regulation: 2dB or less
  • S/N Ratio: 80dB or more (Band Pass: 20Hz - 20kHz)
  • Tone Control: Bass: ±10dB @ 100Hz
  • Control: Master gain control, Input Level selector switch
  • Indicator: Power LED
  • Other Feature: Automatic electronic drive limiter
  • Operating temperature: 32°F to 95°F (0° to +35°C)
  • Operating Humidity: 35% to 80% RH (no condensation)
  • Finish: Panel: ABS resin, Case: Steel plate
  • Dimensions (WxHxD): 8.27" x 3.71" x 10.43" (210 x 94.3 x 265mm)
  • Weight: 10.14lbs (4.6kg)
