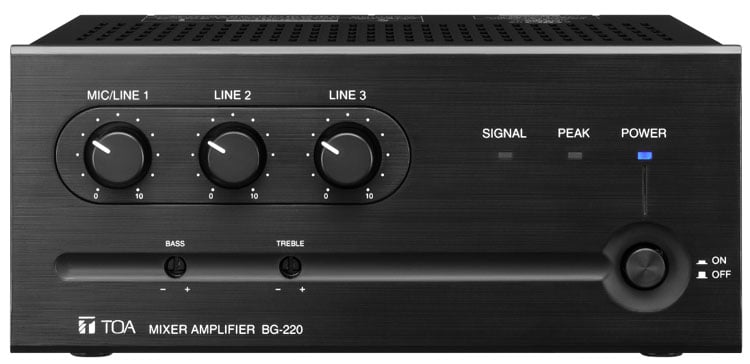

TOA BG220CU
BG-220 Mixer/Amp, 20w, 3 Input

OUR PART #  BG220CU

Our Price: $196.28
List Price: $242.90
You save 19%! (Low Price Guarantee)
In Stock

Recommended Accessories

The TOA BG-220 is a 20 W three-input mixer amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms, and is equipped with the MOH OUT that permits 2-channel broadcast when used in conjunction with the optional booster amplifier BA-235 (35 W) or BA-260 (60 W).

TOA BG220CU Specifications:

  • Power Source: 120 V AC
  • Rated Output: 20 W
  • Power Consumption: 60 W (rated output)
  • Frequency Response: 50 Hz - 20 kHz
  • Total Harmonic Distortion: 0.5 % or less
  • Input: Mic: -60 dB*/ Line 1: -10 dB, Mic/Line 1 selectable, Line 2
  • Output: Speaker: 4 O balanced, MOH: 0 dB, Line: 0 dB
  • Output Regulation: 2 dB or less
  • S/N Ratio: Mic/Line 1: 60 dB or more (Band Pass: 20Hz - 20 kHz)
  • Tone Control: Bass: ±10 dB at 100 Hz
  • Control: Mic/Line 1 gain control, Bass tone control,Mute control (Manual mute), Mic/Line 1 selector switch, MOH assign switch(Mic/Line 1)
  • Indicator: Power LED
  • Other Feature: Automatic electronic drive limiter
  • Operating temperature: 32°F to 95°F (0°C to +35°C)
  • Operating Humidity: 35 % to 80 %RH (no condensation)
  • Finish: Panel: ABS resin, Case: Steel plate
  • Dimensions (WxHxD): 8.27" x 3.71" x 10.43" (210 x 94.3 x 265 mm)
  • Weight: 7.72 lb (3.5 kg)
  • Accessory:
    • Volume control cover: YA-920 ……3
    • Removable teminal plug(2 pins) ……3
    • Removable teminal plug (4 pins) ……1
  • Option: Rack mounting bracket: MB-25B-BK
Rack kit for BG Series, black, single mount
TOA MB-25B-BK Rack kit for BG Series, black, single mount
Rack kit for TOA BG series.  Will work with A-903/906/912MK2, M-900MK2, P-906/912MK2 and A-706/712/724 series as well.(Amp not included)
26.51 32.80 19
In Stock
Rack kit for BG series, dual mount
TOA MB25B-J Rack kit for BG series, dual mount
The TOA MB-25B-J is designed to mount two BG-115s (BG-130s) in a single rack. When using this bracket,remove four plastic feet provided on the bottom surface of each amplifier and joint the two amplifiers with a  metal connector, as ...
26.51 32.80 19
Usually ships in 7-14 business days.
Need it sooner? Call us!
Volume Cover
2.88 3.56 19
Usually ships in 7-14 business days.
Need it sooner? Call us!

Click to download

TOA BG220CU
BG-220 Mixer/Amp, 20w, 3 Input

OUR PART #  BG220CU

Product Information:

The TOA BG-220 is a 20 W three-input mixer amplifier for background music and general announcement. It is suited for use in bars, retail stores, and banquet rooms, and is equipped with the MOH OUT that permits 2-channel broadcast when used in conjunction with the optional booster amplifier BA-235 (35 W) or BA-260 (60 W).

TOA BG220CU Specifications:

  • Power Source: 120 V AC
  • Rated Output: 20 W
  • Power Consumption: 60 W (rated output)
  • Frequency Response: 50 Hz - 20 kHz
  • Total Harmonic Distortion: 0.5 % or less
  • Input: Mic: -60 dB*/ Line 1: -10 dB, Mic/Line 1 selectable, Line 2
  • Output: Speaker: 4 O balanced, MOH: 0 dB, Line: 0 dB
  • Output Regulation: 2 dB or less
  • S/N Ratio: Mic/Line 1: 60 dB or more (Band Pass: 20Hz - 20 kHz)
  • Tone Control: Bass: ±10 dB at 100 Hz
  • Control: Mic/Line 1 gain control, Bass tone control,Mute control (Manual mute), Mic/Line 1 selector switch, MOH assign switch(Mic/Line 1)
  • Indicator: Power LED
  • Other Feature: Automatic electronic drive limiter
  • Operating temperature: 32°F to 95°F (0°C to +35°C)
  • Operating Humidity: 35 % to 80 %RH (no condensation)
  • Finish: Panel: ABS resin, Case: Steel plate
  • Dimensions (WxHxD): 8.27" x 3.71" x 10.43" (210 x 94.3 x 265 mm)
  • Weight: 7.72 lb (3.5 kg)
  • Accessory:
    • Volume control cover: YA-920 ……3
    • Removable teminal plug(2 pins) ……3
    • Removable teminal plug (4 pins) ……1
  • Option: Rack mounting bracket: MB-25B-BK
Rack kit for BG Series, black, single mount
TOA MB-25B-BK Rack kit for BG Series, black, single mount
Rack kit for TOA BG series.  Will work with A-903/906/912MK2, M-900MK2, P-906/912MK2 and A-706/712/724 series as well.(Amp not included)
26.51 32.80 19
In Stock
Rack kit for BG series, dual mount
TOA MB25B-J Rack kit for BG series, dual mount
The TOA MB-25B-J is designed to mount two BG-115s (BG-130s) in a single rack. When using this bracket,remove four plastic feet provided on the bottom surface of each amplifier and joint the two amplifiers with a  metal connector, as ...
26.51 32.80 19
Usually ships in 7-14 business days.
Need it sooner? Call us!
Volume Cover
2.88 3.56 19
Usually ships in 7-14 business days.
Need it sooner? Call us!

Click to download
