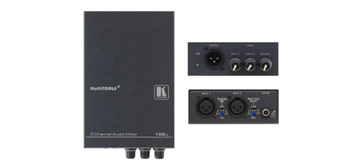

Kramer 102XL
2-Channel Balanced Mono Audio Mixer

OUR PART #:  102XL

The Kramer 102xl is a high-performance 2-channel mono audio mixer for line level and mic level balanced audio signals.
Learn More
Our Price: $236.00
List Price: $295.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Kramer 102XL
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Kramer 102xl is a high-performance 2-channel mono audio mixer for line level and mic level balanced audio signals.  The unit mixers two mono inputs and produces a mixed audio output signal.

  • S/N Ratio: 91.5 dB (line level), 62.5 dB (mic level)
  • Line or Mic Level: Input selectable
  • Phantom Power: 48V DC (input selectable)
  • Level (Gain) Control: Input 1, Input 2, and master
  • Compact MultiTOOL: 4 units can be rack ounted side-by-side in a 1U rack space with the optional RK-1 universal rack adapter


  • Input: 2 line/mic balanced mono on XLR (F) connectors
  • Outputs: 1 line/mic balanced mono on a XLR (M) connector
  • Max. Output Level: 18Vpp.
  • Bandwidth: >100kHz
  • Controls: Line - <-48dB to + 11.4d, Mic - <-1.9dB to +62.5dB, minimum to absolute gain. Phantom +48V selection for condenser microphone by 90 degree DIP-switchers; Line/mic input mode selection by 90 degree DIP-switches
  • Coupling: AC input, DC output
  • Audio THD + Noise: Line - 0.013%, Mic - 0.079%
  • Audio 2nd Harmonic: Line - 0.002%, Mic - 0.01%
  • Power Source: 12V DC, 112mA (DC)
