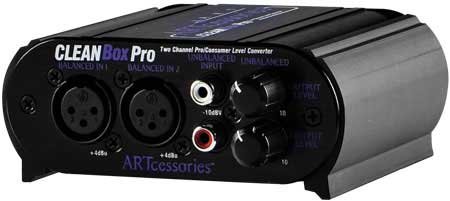

ART CLEANBox Pro
2-Channel Level Converter

OUR PART #:  CLEANBOX-PRO

ART's CLEANBoxPro provides two channels of unbalanced to balanced level conversion and two channels of balanced to unbalanced level conversion in a rugged, compact...
Learn More
Our Price: $69.00
List Price: $85.00
You save 19%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ART CLEANBox Pro
Qty:
In Stock

Similar Products

ART's CLEANBoxPro provides two channels of unbalanced to balanced level conversion and two channels of balanced to unbalanced level conversion in a rugged, compact, and portable unit. Balanced lines offer increased immunity to external electrical noise, such as hum. Since a balanced system minimizes induced noise, it is the preferred method of connecting audio gear, especially when long lengths of cable are used.

One section of the CLEANBoxPro converts two channels of consumer-level unbalanced input signals into two channels of pro line-level balanced output signals. It has two RCA jack inputs and a stereo mini-phone jack input connected in parallel. The balanced output feeds two XLR male jacks.

The other section of the CLEANBoxPro converts two channels of line-level balanced input signals into two channels of consumer unbalanced output signals. It has two XLR female input jacks. The unbalanced output feeds two RCA jacks and a stereo mini-phone jack connected in parallel.

Each section has stereo level controls to optimize signal levels. An LED indicator lights when power is applied.

The CLEANBoxPro can be an invaluable tool in application areas including (but not limited to): home or professional recording studios, live sound, PA, permanent installs, DJ, AV, consumer HiFi, podcasting and broadcasting. The CLEANBoxPro can be used with: mixers, audio processors, laptop computers, computer sound cards, CD/DVD players, video gaming machines, MP3 player/recorders, powered monitors and digital audio workstations.

Features

  • XLR connectors for balanced inputs and outputs
  • RCA phono jacks and stereo 1/8" mini-phone jacks for unbalanced inputs and outputs
  • Unbalanced output level control
  • Balanced output level control
  • Rugged extruded aluminum case
  • Light On/Off switch
  • Comes with external power supply for operation with AC mains
  • Low noise, low distortion circuitry

Specifications

  • Frequency Response: 20Hz-20kHz, +/-1dB
  • Total Harmonic Distortion: <.01% @ 1kHz
  • Signal to Noise Ratio: >90dB
  • Common Mode Rejection Ratio: >40dB
  • Input Impedance:
    Balanced: 20k ohms
    Unbalanced: 100k ohms
  • Output Impedance:
    Balanced: 100 ohms
    Unbalanced: 300 ohms
  • Maximum Gain:
    Balanced to Unbalanced: -6dB
    Unbalanced to Balanced: +21dB
  • Maximum Input Level: +21 dBu
  • Maximum Output Level:
    Balanced: +21dBu
    Unbalanced: +15dBu
  • Power: 7.5-12V AC/DC, <150mA
  • Dimensions (D x W x H): 1.85" x 4.6" x 4.3"
  • Weight: 1.10 lbs
