Aviom MT-X
Expansion Box F/MT1-AVIOM

OUR PART #:  MT-X

The MT-X Expansion Box provides rugged protection to a Personal Mixer's case and connectors as well as additional audio connectivity options...
Learn More
Our Price: $119.00
List Price: $135.00
You save 12%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Aviom MT-X
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

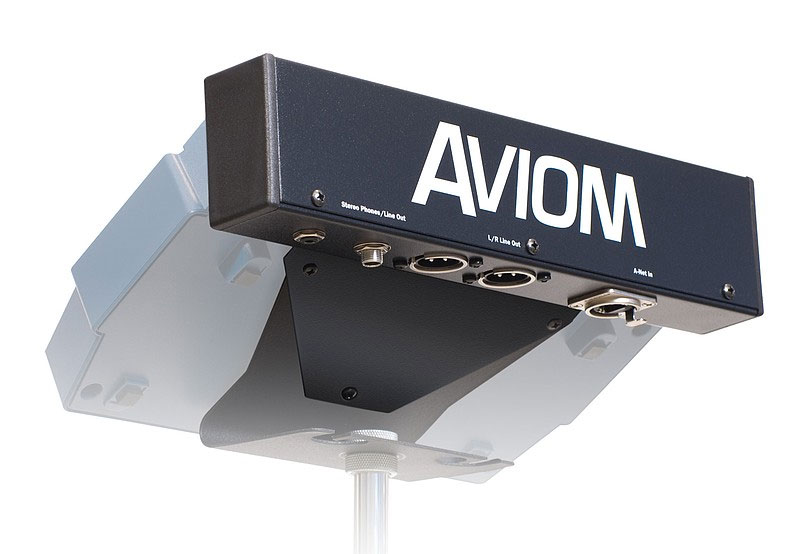

The MT-X Expansion Box provides rugged protection to a Personal Mixer's case and connectors as well as additional audio connectivity options, simplifying connections to nearly any monitoring device.

The MT-X attaches to the built-in mounting holes on the underside of the Personal Mixer along with an MT-1 Mic Stand Mount. Personal Mixers equipped with an MT-X are designed to be powered over the Cat-5 cable from an A-16D or A-16D Pro A-Net distributor.
MT-X Connectivity

Audio connections include both 1/8-inch and 1/4-inch stereo headphone jacks along with separate XLR left/right unbalanced line-level audio outputs. The A-Net In on the MT-X utilizes a heavy-duty locking EtherCon® connector. All connections are found on the underside of the MT-X case.

The MT-X Expansion Box can be attached to the A-16II or original (discontinued) A-16 Personal Mixers.

Features:

  • Provides robust protection to the Personal Mixer's case and connectors
  • Attaches easily to any Personal Mixer
  • 1/4-inch and 1/8-inch stereo headphone outputs
  • XLR left/right line-level audio outputs (unbalanced)
  • EtherCon® connector for A-Net In
  • Requires MT-1 Mic Stand Mount

Specifcations:

Audio Outputs

  • 1/4-inch TRS stereo, headphone or line level;
  • 1/8-inch TRS stereo, headphone or line level;
  • XLR left/right audio outputs, unbalanced

A-Net I/O

  • 1 A-Net In, EtherCon® RJ45 connector

Dimensions:

  • 10.6 in. (269 mm) wide x 1.44 in. (36.8 mm) deep; 2.38 in. (50.8 mm) high

Mounting:

  • Attaches with three screws to bottom of A-16II or A-16 Personal Mixers;
  • Requires MT-1 Mic Stand Mount;
  • Three 6-32, 3/8-inch long screws included

Weight:

  • 1.0 lb. (0.45 kg)
