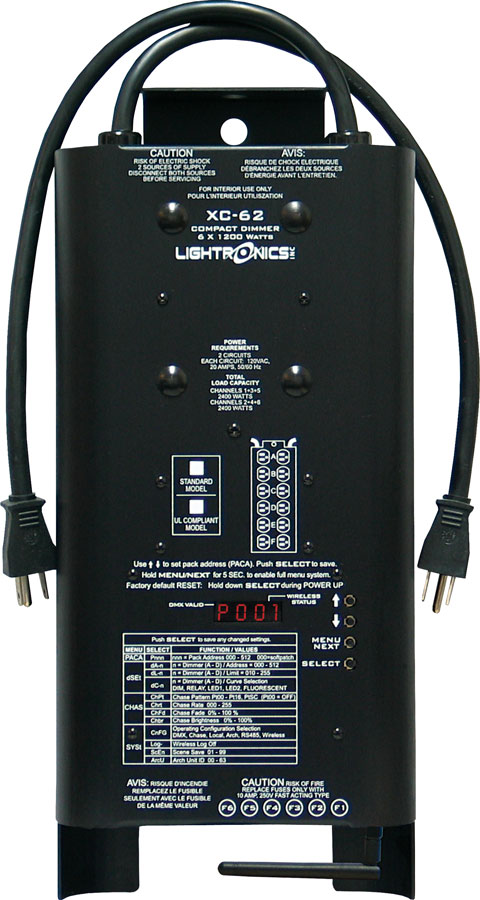

Lightronics Inc. XC62-WSRX
6 Channels x 1200W Wireless DMX Portable Dimmer with Built-In Wireless DMX Receiver

OUR PART #:  XC62-WSRX

The XC-62 dimming system has 6 circuits with a load capacity of 1200 Watts per circuit. Each circuit is protected by a 10 Amp fast acting fuse.
Learn More
Our Price: $921.75
List Price: $1,229.00
You save 25%!
Write the first review.
Lightronics Inc. XC62-WSRX
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The XC-62 dimming system has 6 circuits with a load capacity of 1200 Watts per circuit. Each circuit is protected by a 10 Amp fast acting fuse. An allowance of 200% overhead capacity is employed in the triac circuit design, 25 Amps per circuit, and an overhead of up to 400 Volts per circuit. The dimming system has a rise time of not less then 350 microseconds. A user may set dimmer attributes of Dim or Relay, unit address, and stand alone chase functions via menus. The dimming system uses the USITT standard DMX-512 protocol, on a 5 pin XLR type connector for direct control of the dimming circuits. The microcontroller directly applies pulse width modulation to channel output drive opto-couplers without the need for any analog circuitry. The opto-couplers provide 5000 Volt isolation between the high voltage and all other circuitry.

Lightronics Inc. XC62-WSRX Wireless DMX Protable Dimmer Features:

  • Built-In Wireless DMX Receiver!
  • LED Digital Display
  • 6 Channels
  • 1200W per Channel
  • Softpatch (each dimmer)
  • Dimmer Limiting
  • Dimmer Curve Selection
  • Architectural Interface
  • AMX/Crestron Interface
  • DMX-512 Protocol
  • 8 Built in Chases
  • Relay Mode Switchable
  • Fuses
  • Edison Outputs
  • 120V

Lightronics Inc. XC62-WSRX Wireless DMX Protable Dimmer Specifications:

  • Channels: 6
  • Channel Capacity: 1200 Watts per Channel
  • Total Power: 4800 Watts
  • Control Protocol: DMX-512, RS-485, Architectural, Optional Wireless DMX(included)
  • Control Connections: Dual 5 Pin XLR
  • Power Requirements: 120VAC, Two 20 Amp Circuits
  • Power Input: Two Edison Plugs
  • Frequency: 50 or 60Hz
  • Fusing: 10 Amp each Channel
  • Preheat Voltage: Soft Start Control
  • Response Curve: Incandescent Bulbs, LED, Fluorescent, Relay Mode
  • Filter Rise Time: 350 Microseconds
  • Filter Max. Rate of Rise: 105 Milliamps / Microsecond
  • Full Load Voltage Drop: 3 Volts
  • Efficiency: 97%
  • Size: 16”L x 7”W x 2 5/8”D
  • Weight: 9 Pounds
