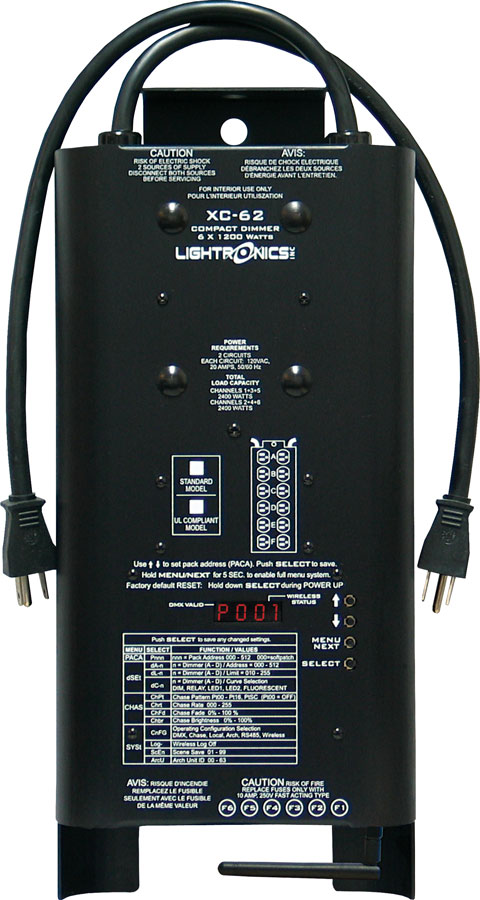

Lightronics Inc. XC-62
6 Channels x 1200W Wireless DMX Portable Dimmer

OUR PART #:  XC62

The XC-62 dimming system has 6 circuits with a load capacity of 1200 Watts per circuit. Each circuit is protected by a 10 Amp fast acting fuse.
Learn More
Our Price: $570.00
List Price: $760.00
You save 25%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lightronics Inc. XC-62
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The XC-62 dimming system has 6 circuits with a load capacity of 1200 Watts per circuit. Each circuit is protected by a 10 Amp fast acting fuse. An allowance of 200% overhead capacity is employed in the triac circuit design, 25 Amps per circuit, and an overhead of up to 400 Volts per circuit. The dimming system has a rise time of not less then 350 microseconds. A user may set dimmer attributes of Dim or Relay, unit address, and stand alone chase functions via menus. The dimming system uses the USITT standard DMX-512 protocol, on a 5 pin XLR type connector for direct control of the dimming circuits. The microcontroller directly applies pulse width modulation to channel output drive opto-couplers without the need for any analog circuitry. The opto-couplers provide 5000 Volt isolation between the high voltage and all other circuitry.

Lightronics Inc. XC-62 Portable Dimmer Features:

  • LED Digital Display
  • 6 Channels
  • 1200W per Channel
  • Softpatch (each dimmer)
  • Dimmer Limiting
  • Dimmer Curve Selection
  • Architectural Interface
  • AMX/Crestron Interface
  • DMX-512 Protocol
  • 8 Built in Chases
  • Relay Mode Switchable
  • Fuses
  • Edison Outputs
  • 120V

Lightronics Inc. XC-62 Portable Dimmer Specifications:

  • Channels: 6
  • Channel Capacity: 1200 Watts per Channel
  • Total Power: 4800 Watts
  • Control Protocol: DMX-512, RS-485, Architectural,Optional Wireless DMX
  • Control Connections: Dual 5 Pin XLR
  • Power Requirements: 120VAC, Two 20 Amp Circuits
  • Power Input: Two Edison Plugs
  • Frequency: 50 or 60Hz
  • Fusing: 10 Amp each Channel
  • Preheat Voltage: Soft Start Control
  • Response Curve: Incandescent Bulbs, LED, Fluorescent,Relay Mode
  • Filter Rise Time: 350 Microseconds
  • Filter Max. Rate of Rise: 105 Milliamps / Microsecond
  • Full Load Voltage Drop: 3 Volts
  • Efficiency: 97%
  • Size: 16”L x 7”W x 2 5/8”D
  • Weight: 9 Pounds
