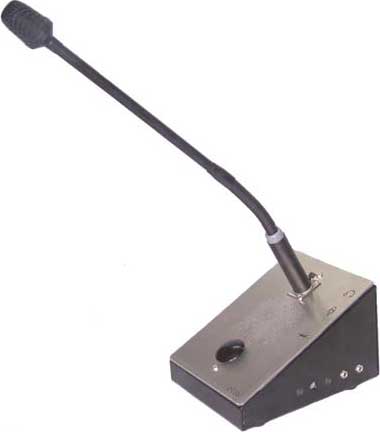

Quam DTS1
Desktop Communications Console with Gooseneck Microphone

OUR PART #  DTS1

Our Price: $387.91
List Price: $604.32
You save 36%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

Quam's DTS1 desktop intercom station is a vandal-resistant, microphone/loudspeaker assembly with a push-to-talk (PTT) button switch.  Loudspeaker baffle is 12 gage, brushed stainless steel with vandal-resistant internal baffle; enclosure is 16 gage CRS with "pin-in-torx" hardware.

  • Console finish: black baked epoxy hybrid finish.

AUDIO SPECIFICATIONS

  • DTS1 Microphone Type: Unidirectional Dynamic
  • Sensitivity: -76 dBV/Pa ±4dB ¹
    ¹ 0dB=1V/Pa, 1kHz
  • Impedance: 500 ohms Nominal
  • Frequency Response: 130-12kHz, ±3dB
  • Loudspeaker Size: 3" Frame
  • Average Sensitivity: 87 dB, 1W/1M
  • Frequency Response: 150-10KhZ

ELECTRICAL SPECIFICATIONS:

  • Volume Control -15 dB Maximum attenuation
  • Headset Jack 3.5mm, mono output, disconnects "never full off" speaker output when activated
  • Electrical Connections Internal barrier strip

Quam DTS1
Desktop Communications Console with Gooseneck Microphone

OUR PART #  DTS1

Product Information:

Quam's DTS1 desktop intercom station is a vandal-resistant, microphone/loudspeaker assembly with a push-to-talk (PTT) button switch.  Loudspeaker baffle is 12 gage, brushed stainless steel with vandal-resistant internal baffle; enclosure is 16 gage CRS with "pin-in-torx" hardware.

  • Console finish: black baked epoxy hybrid finish.

AUDIO SPECIFICATIONS

  • DTS1 Microphone Type: Unidirectional Dynamic
  • Sensitivity: -76 dBV/Pa ±4dB ¹
    ¹ 0dB=1V/Pa, 1kHz
  • Impedance: 500 ohms Nominal
  • Frequency Response: 130-12kHz, ±3dB
  • Loudspeaker Size: 3" Frame
  • Average Sensitivity: 87 dB, 1W/1M
  • Frequency Response: 150-10KhZ

ELECTRICAL SPECIFICATIONS:

  • Volume Control -15 dB Maximum attenuation
  • Headset Jack 3.5mm, mono output, disconnects "never full off" speaker output when activated
  • Electrical Connections Internal barrier strip
