Product Overview

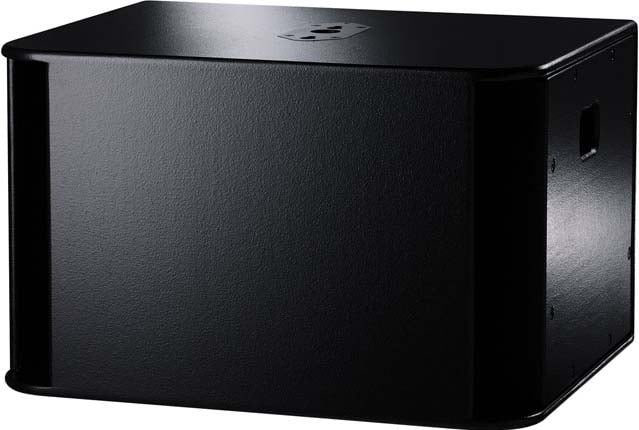

Nexo's LS600 Sub-Bass extends the usable range of the PS10-R2 Loudspeaker to 38Hz, providing exceptional performance and high power output (138dB Peak) in a compact, lightweight package.
The PS10 TDController's integral sub section and combined signal (PS10R2 and LS600) Speakon wiring ensure cost effective and simple system implementation. One LS600 is typically used with two PS10-R2 loudspeakers, additional units may be used for an enhanced effect.
Applications:
- Touring, installed PA for clubs, A/V, theatre, broadcast, Houses of Worship, etc. High-quality stage monitoring for cabarets A/V, theatre, broadcast, etc.
- Fill-in system for use with larger NEXO PS/Alpha systems, or any application needing exceptional side, down and near-field augmentation.
Specifications:
- High-power system (138dB Peak SPL @ 1m) with 15" VLF long excursion driver.
- VLF extension (to 38Hz) of PS10R2 Loudspeakers.
- Sophisticated control electronics ensure reliable, linear operation.
- Integral pole mount that supports one or two PS10R2 Loudspeakers.
- Dimensions: 17.12" H x 27.09" W x 20.79" D (435 x 688 x 528 mm)
- Net Weight: 66 lbs (30 kg)
- Shipping Weight & Volume: 64.68 lbs (29.4 kg), 0.265 cubic metres.
- Connectors: 2 x NL4MP SPEAKON 4 pole
- Construction: Baltic Birch Ply & textured, polyurethane black coating.
- Fittings: Handles 2 Metal recessed pockets.
- Flying Points: One plate connecting with external accessories.
- Stand fittings: Internal Steel Stand Fitting on Top (35mm, 1 3/8") allows pole mounting for 1 PS10-R2.
- Specifications (with PS10 TDController-R2):
- Frequency Response*: 40 Hz - 110 Hz ±3dB.
- Usable Range @-6dB*: 38 Hz - 120 Hz.
- Sensitivity 1W @ 1m**: 101 dB SPL Nominal.
- Nominal Peak SPL @ 1m**: 135 to 138 dB Peak.
- Crossover Frequencies 120 Hz Active through PS10 TD Controller-R2.
- Nominal Impedance 8 Ohms.
- Recommended Amplifiers 1000 to 2000 Watts / 8 Ohms.
- *Response curves & data: Anechoic Far Field for the PS10-R2 + PS10TDController-R2. Half-Space Anechoic radiation for the LS600 + PS10 TDController-R2.
- **Sensitivity & Peak SPL data: these will depend on spectral distribution and crest factor of program material. Measured with band limited Pink Noise. Nominal refers to Voice Decade (300 Hz - 3 kHz), Wideband to the specified ±3dB range. Data are for speaker + processor + recommended amplifier combinations. Peak SPL is at clipping of recommended amplifier.
- System Operation:
- Electronic Controller: The LS600 Subwoofer must be used with a Nexo Controller (PS10TD -R2, NX242, or NXAMPS). Use without a properly connected Controller will result in poor sound quality and may damage the components.
- Subbass: The LS600 Subwoofer provides optional VLF extension for PS10R2 Loudspeakers. Active two-way operation with the PS10-R2 is included in the PS10TD-R2, NX242 or NXAMPS. One LS600 matches 2 x PS10-R2, additional LS600 may be used for enhanced effect.
- Speaker Cables: The PS10R2 is wired 2- & 2+ on Speakon connectors, LS600 on 1- & 1+. Loop through Speakons are present on both products. Single identical cables can thus be used to loop through combinations of up to 2 x PS10R2 & 1 x LS600 in no particular order. As part of a policy of continual improvement, NEXO reserves the right to change specifications without notice.
NOTE:
Directivity curves & data: obtained by computer treatment on off axis response curves. E&OE September 2009.
