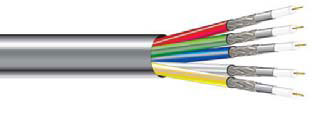

West Penn 255CRGB
Cable, Coax, Miniature RGBHV, 25 gauge, 1000'

OUR PART #  255CRGB

Our Price: $1,050.71
List Price: $1,585.30
You save 34%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

This 25 gauge, 5 center-conductor cable is designed for use with indoor RGBHV component video systems.

Specifications

Individual Cable

  • Conductor: 25 AWG bare copper
  • Stranding: Solid
  • Insulation Material: Foam FEP-Teflon
  • Insulation Thickness: 0.73" Nom.
  • Shield: 100% Aluminum Foil + 95% tinned spiral braid
  • Jacket Materisal: Copolymer
  • Individual Cable Diameter: 0.105" Nom.

Overall Cable

  • Jacket Material: Plenum PVC
  • Overall Cable Diameter: 0.310" Nom.
  • Number of Conductors: 5 center conductor
  • Flame Rating: UL NFPA 62

Electrical and Environmental

  • Temperature Rating: -4ºF to 140ºF
  • Max Capacitance Between Conductors @ 1kHz: 162 pf/ft Nom
  • Velocity of Propagation: 82% Nom
  • Impedance: 75 ohms nom.
  • DC Resistance per Conductor @ 68ºF: 32.5 ohms/1M' nom.
  • Jacket Color: red, green, blue, yellow, white
  • Overall Jacket Color: Black
  • RoHS Compliant: Yes

Click to download

West Penn 255CRGB
Cable, Coax, Miniature RGBHV, 25 gauge, 1000'

OUR PART #  255CRGB

Product Information:

This 25 gauge, 5 center-conductor cable is designed for use with indoor RGBHV component video systems.

Specifications

Individual Cable

  • Conductor: 25 AWG bare copper
  • Stranding: Solid
  • Insulation Material: Foam FEP-Teflon
  • Insulation Thickness: 0.73" Nom.
  • Shield: 100% Aluminum Foil + 95% tinned spiral braid
  • Jacket Materisal: Copolymer
  • Individual Cable Diameter: 0.105" Nom.

Overall Cable

  • Jacket Material: Plenum PVC
  • Overall Cable Diameter: 0.310" Nom.
  • Number of Conductors: 5 center conductor
  • Flame Rating: UL NFPA 62

Electrical and Environmental

  • Temperature Rating: -4ºF to 140ºF
  • Max Capacitance Between Conductors @ 1kHz: 162 pf/ft Nom
  • Velocity of Propagation: 82% Nom
  • Impedance: 75 ohms nom.
  • DC Resistance per Conductor @ 68ºF: 32.5 ohms/1M' nom.
  • Jacket Color: red, green, blue, yellow, white
  • Overall Jacket Color: Black
  • RoHS Compliant: Yes

Click to download
