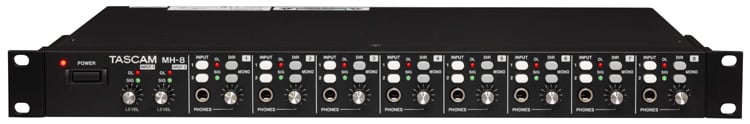

Tascam MH-8 8-Channel Headphone Amplifier Image 1

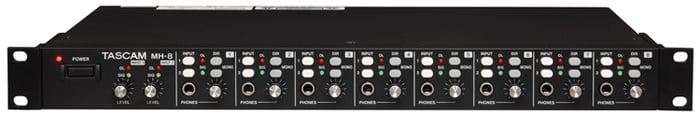

Tascam MH-8 8-Channel Headphone Amplifier Image 2
Tascam MH-8 8-Channel Headphone Amplifier Image 3
Tascam MH-8 8-Channel Headphone Amplifier
Our Price: $499.00
List Price: $699.00
You save 29%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The ultimate headphone amplifier, TASCAM's MH-8 works great for use in studio, stage and installation applications...and more. Each of the unit's 8 stereo outputs achieves 250 mW per side with 3 available switchable sources. It has 2 stereo inputs that can be shared to any of the outputs, plus individual stereo direct inputs are also available for each of the 8 channels. A headphone out can select any one of these inputs, or mix several together. A set of foldback outputs allow you to chain other MH-8 units (sold separately) into a system.

Applications

  • Music retailer listening station
  • Recording studio monitoring
  • In-ear stage monitor distribution
  • Tradeshow headphone distribution

Features

  • (8) stereo ¼" headphone outputs
  • 250 mW + 250 mW @ 32 Ω per channel
  • (16) ¼" TRS balanced direct inputs
  • (4) XLR balanced inputs (Channels 1 and 2)
  • (2) ¼" TRS balanced inputs (Chan 1)
  • (2) RCA unbalanced inputs (Chan 2)
  • (4) TRS balanced foldback outputs
  • Each headphone output switchable to input 1, input 2 and direct input source (or a combination of the three)
  • Master input gain controls
  • Ground-lift switch and terminal

Specifications

  • Note: specifications and further information can be found within the items located under the "Documentation" tab above.
  • Audio Inputs/Outputs
    • INPUT 1 and 2
      • Connector: XLR-3-31 (1: GND, 2: HOT: 3: COLD) × 2 pairs
      • Input impedance: 56kΩ
      • Nominal input level: +4dBu (1.23mV)
      • Maximum input level: +24dBu (12.3V)
    • INPUT 1
      • Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pairs
      • Input impedance: 56kΩ
      • Nominal input level: +4dBu (1.23V)
      • Maximum input level: +24dBu (12.3V)
    • INPUT 2
      • Connector: RCA Pin jack × 1 pair
      • Input impedance: 22kΩ
      • Nominal input level: –10dBu (0.3V)
      • Maximum input level: +10dBu (3.16V)
    • DIRECT INPUT
    • Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 8 pairs
    • Input impedance: 56kΩ
    • Nominal input level: +4dBu (1.23V)
    • Maximum input level: +24dBu (12.3V)
  • FOLDBACK OUT
    • Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 2 pairs
    • Input impedance: 94kΩ
    • Nominal input level: +4dBu (1.23V)
    • Maximum input level: +24dBu (12.3V)
  • PHONES OUT
    • Connector: 1/4" (6.3mm) Stereo Phone jack × 8
    • Maximum output level : 250mW + 250mW (32Ω)
  • Power: AC100 - 240V, 50/60Hz
  • Power consumption: 36W
  • Dimensions (W×H×D): 19.0" × 1.73" × 11.0" / 482 × 44 × 280mm
  • Weight 8.4lbs. / 3.8kg
  • Audio performance
    • Frequency response
      • PHONES out: 20Hz to 50kHz/100mW, 32Ω ±3dB
      • FOLDBACK out: 10Hz to 100kHz ±3dB
    • S/N ratio
      • PHONES out: 85dB or greater (A-weighted, 20kHz, LPF)
      • FOLDBACK out: 90dB or greater (A-weighted, 20kHz, LPF)
    • THD
      • PHONES out: 0.05% or less (when outputting 100mW + 100mW 32Ω, 20Hz HPF and 20kHz LPF)
      • FOLDBACK out: 0.07% or less (20Hz HPF and 20kHz LPF)
    • Channel separation
      • PHONES out: 50dB or greater (within a channel, A-weighted, 20kHz LPF, 1kHz nominal input and output, 32Ω termination)
      • FOLDBACK out: 90dB or greater (A-weighted, 20kHz LPF, 1kHz nominal input and output, 600Ω termination)
    • Crosstalk
    • PHONES out: 65dB or greater (A-weighted, 20kHz LPF, 1kHz nominal input and output, 32Ω termination)
