Product Overview

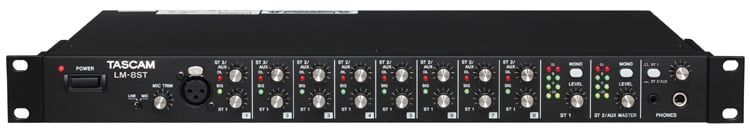

A 1U rack-mountable line mixer, the LM-8ST from TASCAM works great for installation, studio submixing, keyboardists or for anyone seeking a great-sounding mix. Eight pairs of balanced ¼" TRS inputs - switchable from +4 or -10dB - can be bussed to a pair of XLR balanced outputs, labeled ST1 and ST2/AUX. It features pre- or post-fader bussing for the alternate buss, and master output level controls and metering keep signals under control. Additionally, also included is a microphone input for announcements or performance.
Applications
- Boardroom • Conference room • Health club • Restaurant • House of worship • Keyboard mixer • Effects return submixer • One-man performance stage mixer
Features
- (8) stereo channel / 4-buss line mixer
- (8) stereo ¼" TRS balanced inputs with -10/+4dB switch
- 2-segment LED meter per channel
- ST1 and ST2/AUX level control per channel
- ST1 and ST2/AUX master level controls
- Each channel switchable to ST2 (pre fader) or AUX (post) output
- ¼" and ⅛" stereo headphone outputs
- XLR balanced ouptuts for ST1 and ST2/AUX
- Mic input with trim control on front panel
- Stereo balanced buss output/input for cascade
- Ground lift switch and terminal
- 1U rack-mountable
Specifications
- Note: specifications and further information can be found within the items located under the "Documentation" tab above.
- Audio Inputs/Outputs
- MIC IN
- Connector: XLR-3-31 (1: GND, 2: HOT: 3: COLD) × 1
- Input impedance: 2.4kΩ
- Nominal input level: –58dBu (1mV) to –12dBu (195mV)
- Maximum input level: +10dBu (2.45V)
- STEREO IN
- Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 8 pairs
- Input impedance: 16kΩ
- Nominal input level: +4dBu (1.23V)
- Maximum input level: +24dBu (12.3V)
- MASTER BUSS IN
- Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pair
- Input impedance: 16kΩ
- Nominal input level +4dBu (1.23V)
- Maximum input level: +24dBu (12.3V)
- ST1, ST2/AUX OUT
- Connector: XLR-3-32 Phone jack (1: GND, 2: HOT, 3: COLD) × 2 pairs
- Input impedance: 94Ω
- Nominal input level: +4dBu (1.23V)
- Maximum input level: +24dBu (12.3V)
- ST1, ST2/AUX OUT
- Connector: RCA Pin jack × 2 pairs
- Input impedance: 200Ω
- Nominal input level; –10dBu (0.3V)
- Maximum input level: +10dBu (3.16V)
- BUSS OUT
- Connector: 1/4" (6.3mm) TRS Phone jack (Top: HOT, Ring: COLD, Sleeve: GND) × 1 pair
- Input impedance: 94Ω
- Nominal input level: +4dBu (1.23V)
- Maximum input level: +24dBu (12.3V)
- PHONES OUT
- Connector: 1/4" (6.3mm) Stereo Phone jack × 1
- Maximum output level: 250mW + 250mW (32Ω)
- Power: AC100 - 240V, 50/60Hz
- Power consumption: 15W
- Dimensions (W×H×D): 19.0" × 1.73" × 11.0" / 482 × 44 × 280mm
- Weight 8.4lbs. / 3.8kg
- Audio performance
- Frequency response
- PHONES out: 20Hz to 50kHz ±3dB
- BUSS out: 10Hz to 100kHz ±3dB
- S/N ratio
- PHONES out: 80dB or greater (A-weighted, 20kHz, LPF)
- BUSS out: 80dB or greater (A-weighted, 20kHz, LPF)
- THD
- PHONES out: 0.07% or less (when outputting 100mW + 100mW 32Ω, 20Hz HPF and 20kHz LPF)
- BUSS out: 0.03% or less (20Hz HPF and 20kHz LPF)
- Channel separation
- PHONES out: 50dB or greater (A-weighted, 20kHz LPF, 1kHz nominal input and output, 32Ω termination)
- BUSS out: 70dB or greater (A-weighted, 20kHz LPF, 1kHz nominal input and output, 600Ω termination)
- Crosstalk
- BUSS out: 65dB or greater (A-weighted, 20kHz LPF, 1kHz nominal input and output, 600Ω termination)
