BSS BSSBLU100M Soundweb London 12x8 Signal Processor with BLU Link

OUR PART #: BLU100 MFR #: BSSBLU100M

Copied to clipboard

The Soundweb London BLU-100 offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing and a high bandwidth, fault tolerant digital audio bus. ...Read more

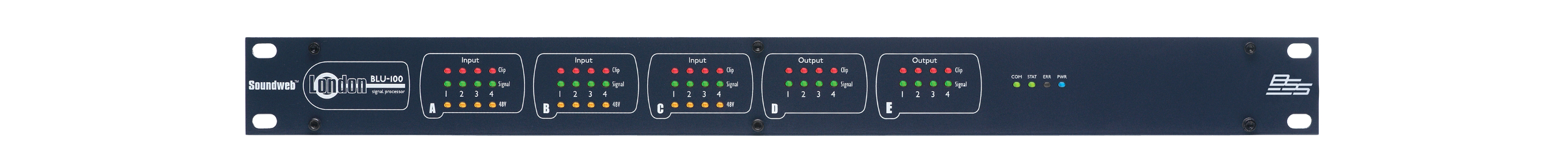

BSS BSSBLU100M Soundweb London 12x8 Signal Processor With BLU Link Image 1
BSS BSSBLU100M Soundweb London 12x8 Signal Processor With BLU Link Image 2
BSS BSSBLU100M Soundweb London 12x8 Signal Processor With BLU Link

Call for info!

In Stock

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Soundweb London BLU-100 offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing and a high bandwidth, fault tolerant digital audio bus. The BLU-100 has open architecture which is fully configurable through HiQnet™ London Architect. A rich palette of processing and logic objects and a “drag and drop” method of configuration provide a simple and familiar design environment.

This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km. The BLU-100 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel digital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120 and BLU-BOB devices.

Analog Inputs provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect.

12 Control Inputs and 6 Logic Outputs allow the BLU-100 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet London Architect.

The BLU-100 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

Features

  • 12 Analog Inputs (with 48v Phantom Power per Channel)
  • 8 Analog Outputs
  • Configurable Signal Processing
  • Rich Palette of Processing and Logic Objects
  • 48 Channel, Low Latency, Fault Tolerant Digital
  • Clear Front Panel LED Indication
  • Bi-Directional Locate Functionality
  • 12 Control Inputs and 6 Logic Outputs for GPIO
  • Soundweb London Interface Kit for Third Party
  • Control System Integration (Documentation) Configuration, Control andMonitoring from HiQnet London Architect

Specifications

  • LED Indicators per Input: Signal Present, CLIP, 48V (input only)
  • Other LED Indicators: COM, STAT, ERR, PWR
  • Analog Inputs: 12 electronically balanced on Phoenix Combicon removablescrew connectors
  • Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to+48dB,in +6dB steps
  • Input Impedance: 3.5kO
  • Maximum Input Level: +20dBu with 0dB input gain,+8dBu with 12dB gain
  • CMRR: >75dB at 1KHz
  • Input Noise (E.I.N.): < -128dBu typical with 150O source
  • Phantom Power: 48V nominal, selectable per input
  • A/D Latency: 37/Fs [0.77ms@48k]
  • Analog Outputs: 8 electronically balanced on Phoenix/Combicon removablescrew connectors
  • Maximum Output Level: +19dBu
  • Frequency Response: 20Hz-20KHz (+0.5dB/-1dB)
  • THD: < -75dB
  • Dynamic Range: 108dB typical, 22Hz-22KHz unweighted
  • Crosstalk:< -75dB
  • Output Impedance: 40O balanced and 20O unbalanced
  • D/A Latency: 29/Fs [0.60ms@48k]
  • Control Ports: 12 inputs and 6 outputs
  • Control Input Voltage: 0 to 4.5v
  • Control Input Impedance: 4.7kO to +5V (2-wire mode), >1MO (3-wire mode)
  • Logic Output Voltage: 0 or +5V unloaded
  • Logic Output Impedance: 440O
  • Logic Output Current: 10mA source, 60mA sink
  • Watchdog Output: Phoenix/Combicon connector for failsafe control
  • Opto Output Current: 14mA maximum
  • Withstanding Voltage: 80V maximum (Off)
  • Series Impedance: 220O (isolated)
  • Control Network Connectors: RJ45 Ethernet connector
  • Maximum Cable Length: 100m/300ft on Category 5 cable between device andEthernet switch
  • BLU Link Connectors: 2 x RJ45 Ethernet connectors
  • Maximum Cable Length: 100m/300ft on Category 5e cable between devices
  • Max. Number of Nodes: 60
  • Latency: 11/Fs [0.23ms@48k]
  • Pass Through Latency: 4/Fs [0.08ms@48k]
  • Mains Voltage: 100-240V AC, 50/60Hz
  • Power Consumption: < 55VA
  • BTU Rating: < 188 BTU/hr
  • Operating Temp. Range: 5 (41) to 35 (95) degrees C (degrees F)
  • Dims: (H(U) x W x D): 1.75" (1U) x 19" x 9.0" (45mm x 483mm x 229mm)
  • Weight: 6.4 lbs / 2.9 kg
