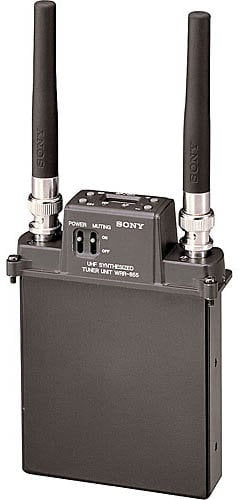

Sony WRR855S(42/44)
WRR-855S42/44 UHF Camera Mount Receiver

OUR PART #:  WRR855S(42/44)

The WRR-855S42 is a portable UHF synthesized receiver for the WL-800 series wireless transmitters.
Learn More
Our Price: $1,393.31
List Price: $1,836.00
You save 24%!
Write the first review.
Sony WRR855S(42/44)
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The WRR-855S42 is a portable UHF synthesized receiver for the WL-800 series wireless transmitters. The camera mountable receiver may be mounted directly onto professional Betacam cameras and operate independently of batteries or cables. The receiver may also be used with DSR model DV camcorders with the use of the CA-WR855 camera adapter, as well as all Sony Broadcast camcorders with the addition of the BTA-801 camera adapter.

Features:

  • Space Diversity Tuner for camera mount operation
  • UHF Channels 42, 43, 44 and 45
  • Phase Locked Loop (PLL) synthesized frequency tuning
  • Compact Design and Lightweight; only 280g (11oz)
  • Water resistance structure
  • Convenient factory-programmed channel plan
  • Squelch circuitry operated by ultrasonic tone for positive transmitter reception
  • Muting RF Level 10dBu or OFF
  • BTA-801/802, CA-WRR855 optional mounting adapters

Specifications:

  • Type of Receiver: WRR-855B Portable/Camera Mount UHF Diversity Receiver
  • RF Carrier Frequency Range: UHF, 638 to 662 MHz
  • Approx. Working Range: Approximately 300 Feet
  • Overall Frequency Response: 100Hz to 15KHz (+/- 3 dB)
  • Signal-to-Noise Ratio: More than 60 dB (A-weighted)
  • Number Of Channels: 188 User, Selectable Channels
  • Type of Outputs: D-sub 15-pin, 150 Ohms
  • Headphone Monitoring: Yes, 1/8" (3.5mm) Mini (TRS) Jack
  • Power Requirements: Camera and Internal Battery
  • Battery Type/Approx. Life: Power from a Sony Camcorder
  • Display: Yes, LCD Display of Status AF, RF, channel, Frequency and Battery
  • Mounting Options: Camera/Belt Mountable
  • Antenna Type: (2) 1/2 Wave, with BNC-R Type Connectors
  • Dimensions (WxHxD): 3.25 x 4.875 x .97" (82.55 x 121 x 24mm)
  • Weight: 11 oz. (280 g)

Consumer Alert

This particular wireless microphone device operates in portions of the 617-652 MHz or 663-698 MHz frequencies. Beginning in 2017, these frequencies are being transitioned by the Federal Communications Commission (FCC) to the 600 MHz service to meet increasing demand for wireless broadband services. Users of this device must cease operating on these frequencies no later than July 13, 2020. In addition, users of this device may be required to cease operations earlier than that date if their operations could cause harmful interference to a 600 MHz service licensee’s wireless operations on these frequencies. For more information, visit the FCC’s wireless microphone website at www.fcc.gov/wireless-microphones-guide or call the FCC at 1- 888-CALL-FCC (TTY: 1-888-TELL-FCC).
