Sony WRR855S(30/32)
WRR-855S30/32 UHF Portable Plug-In Receiver

OUR PART #  WRR855S(30/32)

Sale Price: $1,299.00
List Price: $1,836.00
You save 29%! (Low Price Guarantee)
In Stock

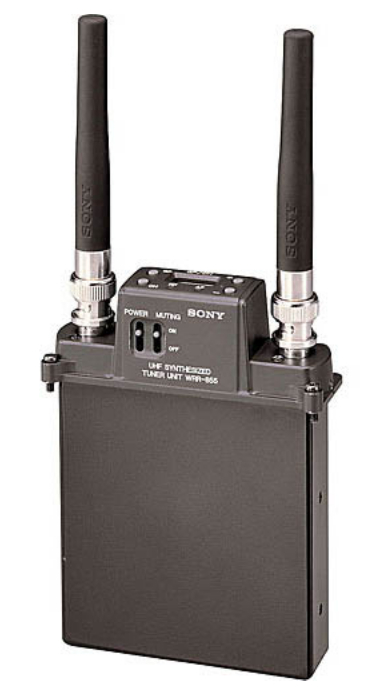

The WRR-855S30/32 is a portable UHF synthesized receiver for the WL-800 series wireless transmitters. The camera mountable receiver may be mounted directly onto professional Betacam cameras and operate independently of batteries or cables.

The receiver may also be used with DSR model DV camcorders with the use of the CA-WR855 camera adapter, as well as all Sony Broadcast camcorders with the addition of the BTA-801 camera adapter.


  • Space Diversity Tuner for camera mount operation
  • UHF Channels 30, 31, 32 and 33
  • Phase Locked Loop (PLL) synthesized frequency tuning
  • Compact Design and Lightweight; only 280g (11oz)
  • Water resistance structure
  • Convenient factory-programmed channel plan
  • Squelch circuitry operated by ultrasonic tone for positive transmitterreception
  • Muting RF Level 10dBu or OFF
  • BTA-801/802, CA-WRR855 optional mounting adapters


  • Type of Receiver: WRR-855B Portable/Camera Mount UHF Diversity Receiver
  • RF Carrier Frequency Range: UHF, 566 to 590 MHz
  • Approx. Working Range: Approximately 300 Feet
  • Overall Frequency Response: 100Hz to 15KHz (+/- 3 dB)
  • Signal-to-Noise Ratio: More than 60 dB (A-weighted)
  • Number Of Channels: 188 User, Selectable Channels
  • Type of Outputs: D-sub 15-pin, 150 Ohms
  • Headphone Monitoring: Yes, 1/8" (3.5mm) Mini (TRS) Jack
  • Power Requirements: Camera and Internal Battery
  • Battery Type/Approx. Life: Power from a Sony Camcorder
  • Display: Yes, LCD Display of Status AF, RF, channel, Frequency and Battery
  • Mounting Options: Camera/Belt Mountable
  • Antenna Type: (2) 1/2 Wave, with BNC-R Type Connectors
  • Dimensions (WxHxD): 3.25 x 4.875 x .97" (82.55 x 121 x 24mm)
  • Weight: 11 oz. (280 g)
