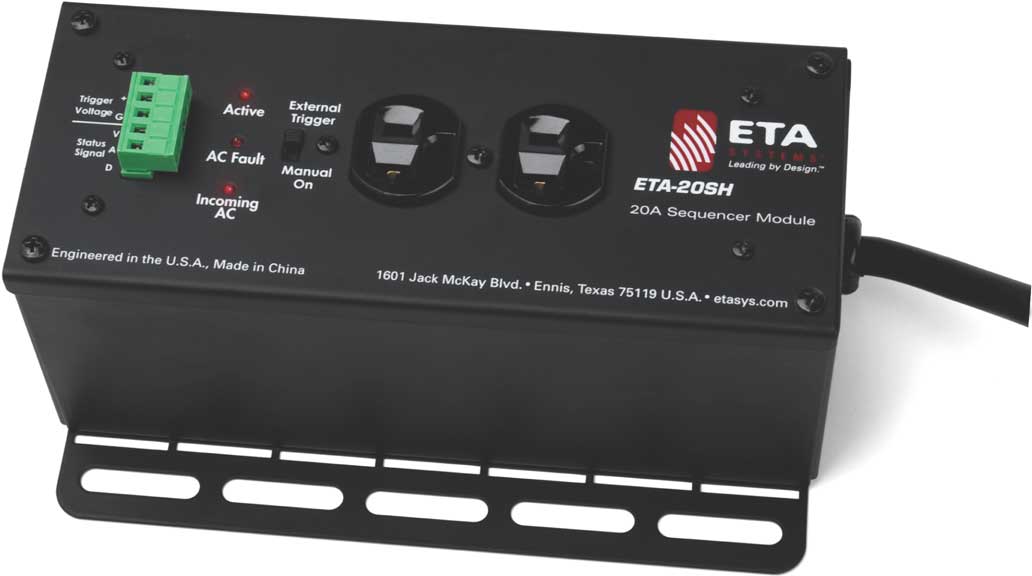

ETA Systems ETA-20SH
AC Power Conditioning & Suppression Module, 2 Outlets, 20A

OUR PART #:  ETA-20SH

The ETA-20SH is a single housing unit for 20A lines.
Learn More
Our Price: $208.50
List Price: $258.95
You save 19%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETA Systems ETA-20SH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETA-20SH is a single housing unit for 20A lines. Features 2 outlets that support AC spike and surge suppression, AC mains voltage monitoring, EVS circuitry, and remote activation. It also supports current monitoring and EMI/RFI filtering for applications where they are used individually.

Features

  • 2 Outlets, 20A
  • RFI/EMI noise filtering
  • Spike & Surge suppression, DCS circuitry
  • Extreme Voltage Shutdown (EVS) below 101V or above 132V AC line
  • AC Fault indicator
  • Fuse protection @ 20A slow blow
  • Manual bypass switch
  • Incoming AC presence LED
  • Active outlet LED
  • Status signals output for voltage and current

Applications
The ETA-20SH is designed to be flexible for use in a variety of applications. When used with a sequenced controller it allows the turning of equipment on and off from a remote location to save energy and to reduce an in-rush of current that stresses the main AC line. It also can be used as a standalone unit for protection against voltage surges and applies EMI/RFI filtering to clean up the AC power at the load source. The following are just a few examples of applications in which the ETA-20SH can be used:

  • Restaurants
  • Houses of Worship
  • Schools
  • Home Theaters
  • Office Buildings
  • Sports Bars
  • Industrial Facilities

Specifications

  • Type: AC Power Conditioner & Suppressor Module
  • Power Requirements: 120V 60Hz
  • Power Consumption: .5W
  • RoHS Compliant: Yes
  • Switched Outlets: Two, 20A
  • Spike & Surge Suppression: H-N, N-G, H-G
  • Manual Override: Slide switch
  • Extreme Voltage Shutdown (EVS): Below 101V or Above 132V AC line (when used with ETA-ECS6RM)
  • Connectors: 5 position Phoenix Euro Block Style
  • Fuse Protection: 20A slow blow
  • DCV Remote Trigger: 5-24DCV
  • Remote Tribber: SPST Contact
  • Status Signals: Output for voltage and Current Data (all signals are low voltage and low current)
  • Indicators: Incoming AC, Active, AC Fault
  • Power Cord: 9', 12-gauge NEMA 5-20P 125V AC plug
  • Current Rating: 20 amps
  • Operating Voltage: 102 to 132 VAC
  • High Voltage Surge Protection: Trigger at 133VAC, 1ms typically (when used with ETA-ECS6RM)
  • Spike & Surge Suppression: H-N, N-G, H-G
  • Low Voltage Protection: Trigger 101 VAC, 1ms Typically (when used with ETA-ECS6RM)
  • Spike Protection Modes: Circuitry on incoming AC mains
  • Minimum Spike Clamping Voltage: 460 VRMS @ 3,000 amps
  • Maximum Spike Clamping Voltage: 6000V
  • Maximum Spike Clamping Response Time: 1 nanosecond
  • Spike Clamping Voltage @ 100A: 1250Vp for 20µs
  • Maximum Surge Current: 6,500 amps
  • Energy Rating @ 2ms: 600 Joules
  • Noise Attenuation EMI/RFI Sequencer: 10dB @ 10kHz, 40dB @ 100kHz, 100dB @ 10MHz
  • Temperature Range: 5° to 35°C
  • Humidity Range: 5% to 95% R.H.
  • Chassis Finish: Black
  • Mounting: Side bracket adjustable
  • Dimensions (H x D x W): 3.0" x 8.5" x 3.5"
  • Weight: 5.5 lbs
  • Agency Listings: MET (UL1449 Code)
