ETA Systems ETA-C15D
Power Conditioner, 10 Outlets (8 Rear, 2 Front), 15A, Digital Voltmeter

OUR PART #:  ETA-C15D

The ETA-S15L offers a simple solution for delivering clean power and protecting equipment from dangerous voltage inrush and includes power control, noise filtering...
Learn More
Our Price: $302.50
List Price: $376.95
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETA Systems ETA-C15D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The ETA-S15L offers a simple solution for delivering clean power and protecting equipment from dangerous voltage inrush and includes power control, noise filtering, and spike/surge protection in a compact, effective power management protection system. It is rack mountable and will fit into a standard 19" wide rack. Includes a pull-out LED lamp for rack illumination, an XLR input for additional lighting on the back, and a front panel digital AC Mains voltmeter.

Features

  • 10 total outlets
  • 8 rear panel switched outlets
  • 2 front panel and 1 rear panel unswitched convenience outlets
  • RFI noise filtering to reduce radio frequency interference
  • EMI to reduce electromagnetic interference
  • Dual clamping spike & surge suppression, DCS circuitry
  • Front panel digital AC Mains voltmeter
  • LED indication of reversed "Live" and "Neutral" wiring
  • Abnormal AC line voltage indicator for voltages between 101V-107V or 128V-132V
  • Extreme Voltage Shutdown (EVS) below 101V or above 132V AC line
  • Circuit breaker protection @ 15A indicated by "Breaker Open" indicator
  • Front mounted pull-out LED light with 2-position dimmer
  • Rear mounted XLR connector for 12VDC LED lamp

Applications
The ETA-C15D was designed to be flexible with features that allow it to be used in a variety of applications. The ETA-C15D can be used solely for protection against voltage surges or for AC distribution. If fuzzy video or frequent static pops occur, the AC power conditioning will elminate or reduce those inconveniences. The following are just a few examples of applications where the ETA-C15D can be used:

  • Restaurants
  • Houses of Worship
  • Schools
  • Home Theaters
  • Office Buildings
  • Sports Bars

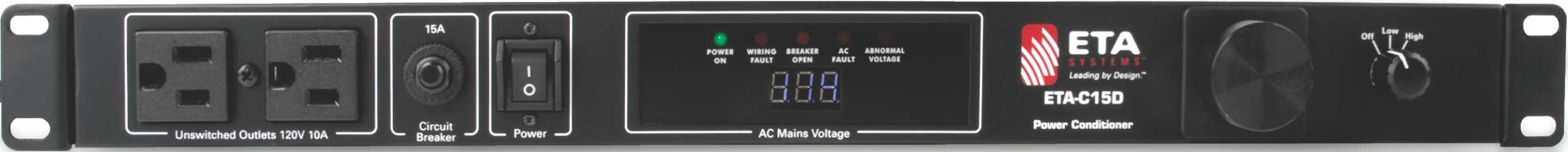

Front Panel

  • Outlets: 2 unswitched
  • Lights: 1 pull out LED with dimmer switch
  • Activation Switch: Rocker
  • Circuit Breaker: 15A resettable
  • AC Mains Voltmeter: Three digits, digital
  • Indicators: AC power on, Abnormal Voltage, AC fault, Breaker Open, Wiring Fault

Rear Panel

  • AC Outlets: 8 outlets total, 6 Filtered, 1 High Power Non-Filtered, 1 Unswitched Connector
  • LED Light Socket: XLR socket to provide 12VDC for optional 16" gooseneck lamp
  • LED Light Switch: Two position (on/off)
  • AC Mains Power Cord: 9', 14-gauge

Specifications

  • Type: Power conditioner & suppressor
  • Current Rating: 15 amps
  • Operating Voltage: 102VAC-132VAC
  • High Voltage Surge Protection: Trigger at 133VAC, 1ms typically
  • Low Voltage Surge Protection: Trigger 101VAC, 1ms typically
  • Voltmeter Accuracy: +/-1.5VAC
  • Spike Protection Modes: DCS (Dual Clamping Suppression) Circuitry on incoming AC mains and each section output
  • Min. Spike Clamping Voltage: 460VRMS @ 3,000A
  • Max. Spike Clamping Voltage: 6000V
  • Max. Spike Clamping Resp. Time: 1 nanosecond
  • Spike Clamping Voltage @ 100A: 1250Vp for 20µs
  • Maximum Surge Current: 6,500A
  • Energy Rating @ 2ms: 2000 Joules
  • Noise Attenuation EMI/RFI: 10dB @ 10kHz/40dB @ 100kHz/100dB @ 10MHz
  • Temperature Rating: 5° – 35°C
  • Humidity Range: 5% to 95% R.H.
  • Chassis Finish: Black
  • Mounting: Rack Mount, 1RU
  • Dimensions (H x D x W): 1.75" x 19" x 8.5", 1RU
  • Power Consumption: 12 watts
  • Agency Listings: MET (UL 1449 Code)
