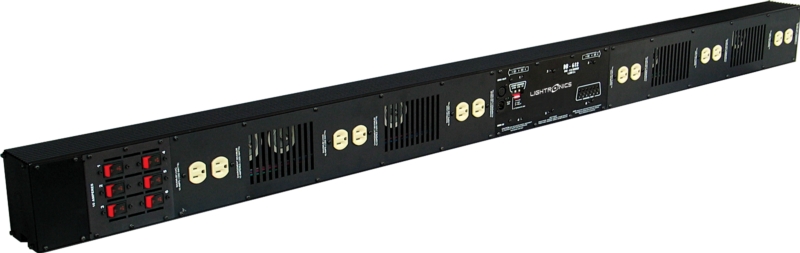

Lightronics Inc. DB-612
Truss Mount Dimmer with Edison

OUR PART #:  DB-612

The DB-612 dimmer is ideally suited for all stage applications including schools, worship facilities, theaters, and auditoriums.
Learn More
Our Price: $1,499.25
List Price: $1,999.00
You save 25%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lightronics Inc. DB-612
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DB-612 dimmer is ideally suited for all stage applications including schools, worship facilities, theaters, and auditoriums. This dimmer has the versatility to accommodate a wide range of facility configurations. High power triacs and extensive heat dissipation capability will ensure reliable operation.

Channel test buttons are conveniently accessible on the dimmer control panel. LED status indicators show control signal status and key dimmer operating information at all times.

The unit is supplied with three mounting brackets which allow a wide variety of installation options.

Lightronics Inc. DB-612 Truss Mount Dimmer Features:

  • 6 channels
  • 1200 watts per channel
  • Truss ready
  • DMX-512 control protocol
  • Magnetic circuit breakers
  • Edison connectors

Lightronics Inc. DB-612 Truss Mount Dimmer Specifications:

  • Channels/Capacity: 6 @ 1200 Watts each
  • Semiconductors: 40 Amp 400V Triacs, 300% overhead
  • Power requirements: 120/240VAC Single Phase, 30 Amps
    120/208VAC Three Phase, 20 Amps
  • Control protocol: USITT DMX-512
  • Filtering: 450 Usec. minimum
  • Overload protection: 10 Amp, fast acting magneticcircuit breaker for each channel
  • Addressing: Starting channel can be set to any of 512channels
  • Local control: On board test buttons for each channel
  • Relay mode: Switchable by individual channel
  • Size: 72 x 5 x 3 inches
  • Weight: 26lbs
