Goldline PROKIT30H
Analyzer Mic Kit with Case

OUR PART #:  PROKIT30H

Our Price: $2,169.00
List Price: $3,154.95
You save 31%!
Write the first review.
Goldline PROKIT30H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

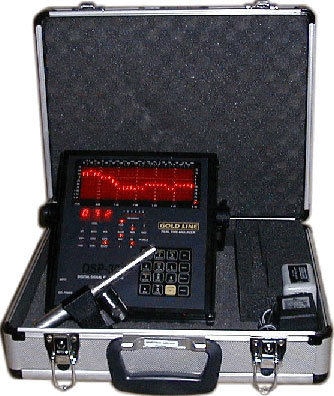

Goldline's ProKit30H for home theater use includes:

  • DSP30 Audio System Analyzer
  • TEF04 intrument microphone
  • PN2 pink noise generator
  • BE2 120Vac to 12V dc @ 500mA power source
  • Aluminum carry case with foam padding.

The DSP30 is a portable 30 channel digital 1/3 octave analyzer. It captures full 85dB window with scales from 1/4 to 5dB. The filters exced ANSI specifications. The DSP30 also comes with RS232 computer interface.

The TEF04 instrument/calibration microphone has a small omnidirectional capsule that captures sonic events accurately. It is ideal for stedio and live recording applications and fits standard 1/2" calibrators. The TEF04 has a XLR 3-pin male output and a frequency response of 20Hz - 15kHz. It requires 12-48Vdc phantom power.

PN2:

  • Provides continuous pink noise, which has an equal amount of energy per octave of bandwidth.
  • OUTPUT: Unbalanced 1/4" jack, impedance 620 ohms
  • OUTPUT LEVEL: Continuous @ 55mV (-23dBu)
  • FREQUENCY RANGE: 20Hz - 20kHz
  • POWER REQUIREMENTS: 9V battery
  • APPROVALS: - CE Mark
    Emissions: - EN 55022 B - FCC Class B
    Immunity: - EN 55024 B
  • Dimensions: 1.75" W x 2.75" H x 1.75" D
  • Weight: 2 oz.
  • CASE MATERIAL: High impact ABS
  • FRONT PANEL: Anodized Aluminum
