West Penn D990-1000

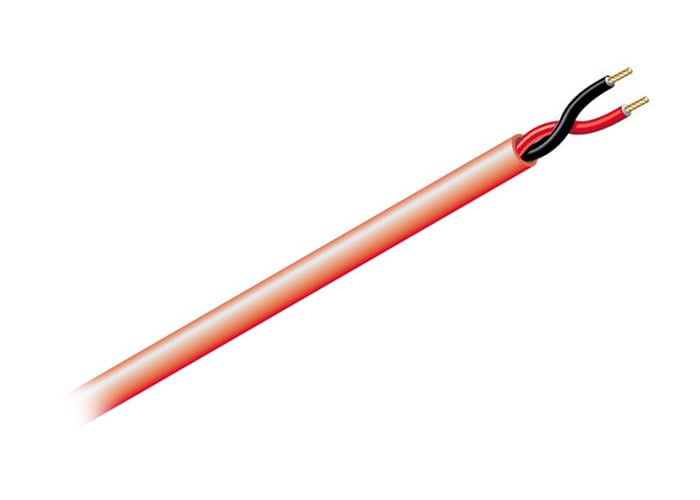

Fire Alarm Cable, 2 Conductors, 16 Gauge, Shielded

OUR PART #:  D990-1000

This 16 gauge, 2-conductor shielded fire alarm cable is designed for use in indoor applications such as data circuits, initiating circuits...
Learn More
Our Price: $223.81
List Price: $267.37
You save 16%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn D990-1000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This 16 gauge, 2-conductor shielded fire alarm cable is designed for use in indoor applications such as data circuits, initiating circuits, notification circuits and addressable systems. 1,000' spool.

Specifications

Construction Parameters

  • Conductor: 16 AWG Bare Copper
  • Stranding: Solid
  • Insulation Material: Copolene
  • Insulation Thickness: 0.015" Nom.
  • Number of Conductors: 2
  • Jacket Material: PVC
  • Jacket Thickness: 0.030" Nom.
  • Overall Cable Diameter: 0.223" Nom.
  • Approximate Cable Weight: 29lbs / 1,000' Nom.
  • Flame Rating: UL1581 Vertical Tray Flame Test

Electrical & Environmental Properties

  • Temperature Rating: -4ºF to 140ºF
  • Operating Voltage: 300V RMS
  • Max Capacitance Between Conductors @ 1kHz: 18pf/ft Nom.
  • DC Resistance per Conductor @ 68ºF: 4.2 ohms / 1,000' Nom.
  • Velocity of Propagation: 71% Nom.
  • Insulation Colors: Black, Red
  • Jacket Color: Red
