West Penn 420-1000
Wire, 4 conductor, 22 gauge, PVC Jacket, w/Drain, 1000` Spool

OUR PART #:  420-1000

This 22 gauge, 4 conductor wire is ideal for indoor applications like intercom, security, sound, audio, background music and power limited control circuits.
Learn More
Our Price: $220.20
List Price: $263.06
You save 16%!
Be the first to review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

West Penn 420-1000
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

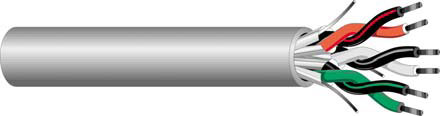

This 22 gauge, 4 conductor wire is ideal for indoor applications like intercom, security, sound, audio, background music and power limited control circuits. It has a gray PVC jacket and comes on a 1,000ft spool.

Specifications

  • Conductor: 22 AWG Bare Copper
  • Stranding: Solid
  • Insulation Material: PVC
  • Insulation Thickness: 0.010" Nom.
  • Number of Conductors: 4 (2 pair)
  • Shield: Each Pair 100% Aluminum Foil
  • Drain: Solid Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.015" Nom.
  • Overall Cable Diameter: 0.195" Nom.
  • Approximate Cable Weight: 25Lbs/1M' Nom.
  • Flame Rating: UL 1666 Riser Flame Test
  • Temperature Rating: -4°F to 140°F
  • Operating Voltage: 300V RMS
  • Max Capacitance Between Conductors @ 1 kHz: 54pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1kHz: 54pf/ft Nom.
  • DC Resistance per Conductor @ 68°F: 17.5Ohms/1M' Nom.
  • Insulation Colors: Black/Red-Red, Black/White-White
  • Jacket Color: Gray
