West Penn D2402-1000
Wire, 2 pair 24 Gauge, Tin Shield, CM Rated, Data

OUR PART #  D2402

Our Price: $157.01
List Price: $262.60
You save 40%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

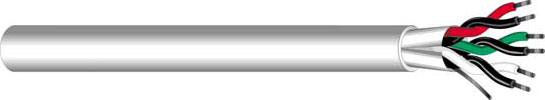

A 1,000' spool of wire with 2 pair of 24 gauge stranded tinned copper conductors, shield and an overall jacket. Ideal for indoor control, signaling, electronic and microprocessor based applications.

Specifications

Construction Parameters

  • Conductor: 24 AWG Tinned Copper
  • Stranding: 7x32
  • Insulation Material: Polyolefin
  • Insulation Thickness: 0.013'' Nom.
  • Number of Conductors: 4
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.030'' Nom.
  • Overall Cable Diameter: 0.228'' Nom.
  • Approximate Cable Weight: 23 Lbs/1M' Nom.
  • Flame Rating: UL 1685

Electrical and Environmental Properties

  • Temperature Rating: -20deg C to 60deg C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 14.5 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz: 26 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 26 Ohms/1M' Nom.
  • Velocity of Propagation: 71% Nom.
  • Impedance: 100O Nom
  • Insulation Colors: 1. Black/Red, Black/White
  • Jacket Color: Gray
  • RoHS Compliant: No

Mechanical Properties

  • Max. Recommended Pull Tension: 46 lbs
  • Min. Bend Radius (install): 2.2"



West Penn D2402-1000
Wire, 2 pair 24 Gauge, Tin Shield, CM Rated, Data

OUR PART #  D2402

Product Information:

A 1,000' spool of wire with 2 pair of 24 gauge stranded tinned copper conductors, shield and an overall jacket. Ideal for indoor control, signaling, electronic and microprocessor based applications.

Specifications

Construction Parameters

  • Conductor: 24 AWG Tinned Copper
  • Stranding: 7x32
  • Insulation Material: Polyolefin
  • Insulation Thickness: 0.013'' Nom.
  • Number of Conductors: 4
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.030'' Nom.
  • Overall Cable Diameter: 0.228'' Nom.
  • Approximate Cable Weight: 23 Lbs/1M' Nom.
  • Flame Rating: UL 1685

Electrical and Environmental Properties

  • Temperature Rating: -20deg C to 60deg C
  • Operating Voltage: 300 V RMS
  • Max.Capacitance Between Conductors @ 1 KHz: 14.5 pf/ft Nom.
  • Capacitance Between Conductors to Shield @ 1 KHz: 26 pf/ft Nom.
  • DC Resistance per Conductor @ 20deg C: 26 Ohms/1M' Nom.
  • Velocity of Propagation: 71% Nom.
  • Impedance: 100O Nom
  • Insulation Colors: 1. Black/Red, Black/White
  • Jacket Color: Gray
  • RoHS Compliant: No

Mechanical Properties

  • Max. Recommended Pull Tension: 46 lbs
  • Min. Bend Radius (install): 2.2"
