West Penn D2402
Data Cable with 2 Pairs of 24 AWG Conductors, 1000 ft

OUR PART #:  D2402

West Penn's D2402 is a 1,000 ft spool of wire with 2 pairs of 24 gauge stranded tinned copper conductors...
Learn More
Our Price: $181.22
List Price: $216.50
You save 16%!
Write the first review.
West Penn D2402
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

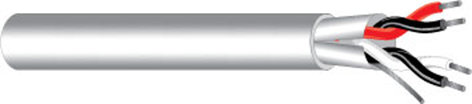

West Penn's D2402 is a 1,000 ft spool of wire with 2 pairs of 24 gauge stranded tinned copper conductors, an aluminum foil shield and an overall PVC jacket. Well-suited for indoor control, signaling, electronic and microprocessor based applications.

West Penn D2402 Specifications:

  • Construction Parameters:
    • Conductor: 24 AWG Tinned Copper
    • Stranding: 7x32
    • Insulation Material: Polyolefin
    • Insulation Thickness: 0.013'' Nom.
    • Number of Conductors: 4
    • Shield: 100% Aluminum Foil
    • Drain: Stranded Tinned Copper
    • Jacket Material: PVC
    • Jacket Thickness: 0.030'' Nom.
    • Overall Cable Diameter: 0.228'' Nom.
    • Approximate Cable Weight: 23 lbs/1M' Nom.
    • Flame Rating: UL 1685
  • Electrical and Environmental Properties:
    • Temperature Rating: -20°C to 60°C
    • Operating Voltage: 300 V RMS
    • Max.Capacitance Between Conductors @ 1 KHz: 14.5pf/ft Nom.
    • Capacitance Between Conductors to Shield @ 1 KHz: 26pf/ft Nom.
    • DC Resistance per Conductor @ 20°C: 26 Ohms/1M' Nom.
    • Velocity of Propagation: 72% Nom.
    • Impedance: 100 Ohms Nom.
    • Insulation Colors: Black/Red, Black/White
    • Jacket Color: Gray
    • RoHS Compliant: Yes
  • Mechanical Properties:
    • Max. Recommended Pull Tension: 46 lbs
    • Min. Bend Radius (install): 2.052"
