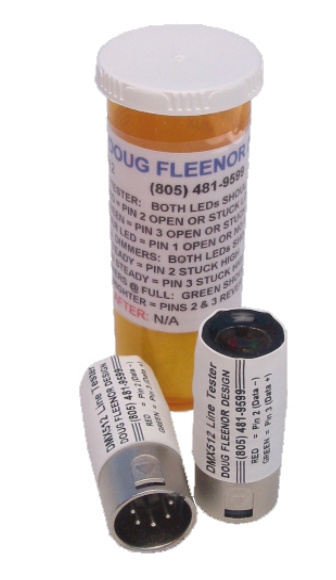

Doug Fleenor Designs DMXTSTR
DMX512 Line Tester

OUR PART #:  DMXTSTR

The DMX512 Line Tester instantly displays the presence of the +Data and -Data signals when plugged into a DMX control line or feed-through connector.
Learn More
Selected Model Price: $30.60
List Price: $34.00
Save up to 10%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Doug Fleenor Designs DMXTSTR
Select model: (shipping times are approximate)
Qty:
Similar Products

The DMX512 Line Tester instantly displays the presence of the +Data and -Data signals when plugged into a DMX control line or feed-through connector. Observing the indicators while fading all the dimmers from zero to full will detect if either line is stuck high. Swapped +Data and -Data lines can be determined by sending all dimmers to full.

Doug Fleenor Designs DMX512 Line Tester Specifications:

  • Connector: 5 pin male or 3 pin male
  • Indicators:
      -  Data + Green T1 light emitting diode(LED)
     -  Data - Red T1 light emitting diode (LED)
  • Effective input impedance: 220 Ohms (each line)
  • Power input: None, draws power from DMX line
  • Color: Silver connector body with white label
  • Size and weight: 1.9" long, 0.8" maximum diameter, 1.5 ounces
