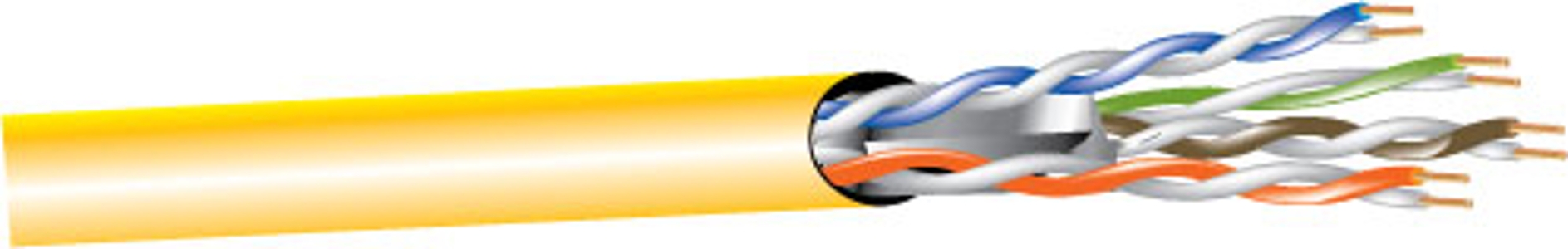

West Penn 4246-BY-THE-FOOT
Cable, 23 Gauge, 8 conductor, CAT6, by the foot

OUR PART #  4246-BY-THE-FOOT

Selected Model Price: $0.31
List Price: $0.44
Save up to 54% when you order by quantity!
Buy 50 @ $0.25 ea.
Buy 200 @ $0.23 ea.
Buy 400 @ $0.20 ea.
(Low Price Guarantee)
Select model: (shipping times are approximate)

This 23 gauge, 8 conductor CAT6 cable is designed for indoor Category 5E applications like Ethernet, IP Cameras and Digital Integration. It meets or exceeds TIA/EIA 568B.2.1 Category 6 Specifications. Available in 1 foot increments.

Specifications

  • Conductor: 23 AWG Bare Copper
  • Stranding: Solid
  • Number of Conductors: 8 (4 pair)
  • Insulation: Thermoplastic - .008"
  • Core Separator: Yes
  • Jacket Material: PVC
  • Overall Cable Diameter: 0.225" Nom.
  • Approximate Cable Weight: 30lbs/1M' Nom.
  • Flame Rating: UL1666
  • Operating Temerature Rating: -4°F - 140°F
  • Operating Voltage Rating: 300V RMS
  • DC Resistance per Conductor @ 68°F: 7.8 Ohms/100m Nom.
  • Mutual Capacitance: 14pf/ft Nom.
  • Nominal Impedence: 100Ohms +/-15% (1-100Mhz)
  • Velocity of Propogation: 66% Nom.
  • Delay Skew: 25ns/100m Max
  • Standards: TIA/EIA568-B.2 1
  • Insulation Colors: 1. Blue/White-Blue, 2. Orange/White-Orange, 3. Green/White-Green, 4. Brown/White-Brown
  • Available Jacket Colors: Blue, Gray, Pink, White
  • RoHS Compliant: Yes

Click to download

West Penn 4246-BY-THE-FOOT
Cable, 23 Gauge, 8 conductor, CAT6, by the foot

OUR PART #  4246-BY-THE-FOOT

Product Information:

This 23 gauge, 8 conductor CAT6 cable is designed for indoor Category 5E applications like Ethernet, IP Cameras and Digital Integration. It meets or exceeds TIA/EIA 568B.2.1 Category 6 Specifications. Available in 1 foot increments.

Specifications

  • Conductor: 23 AWG Bare Copper
  • Stranding: Solid
  • Number of Conductors: 8 (4 pair)
  • Insulation: Thermoplastic - .008"
  • Core Separator: Yes
  • Jacket Material: PVC
  • Overall Cable Diameter: 0.225" Nom.
  • Approximate Cable Weight: 30lbs/1M' Nom.
  • Flame Rating: UL1666
  • Operating Temerature Rating: -4°F - 140°F
  • Operating Voltage Rating: 300V RMS
  • DC Resistance per Conductor @ 68°F: 7.8 Ohms/100m Nom.
  • Mutual Capacitance: 14pf/ft Nom.
  • Nominal Impedence: 100Ohms +/-15% (1-100Mhz)
  • Velocity of Propogation: 66% Nom.
  • Delay Skew: 25ns/100m Max
  • Standards: TIA/EIA568-B.2 1
  • Insulation Colors: 1. Blue/White-Blue, 2. Orange/White-Orange, 3. Green/White-Green, 4. Brown/White-Brown
  • Available Jacket Colors: Blue, Gray, Pink, White
  • RoHS Compliant: Yes

Click to download
