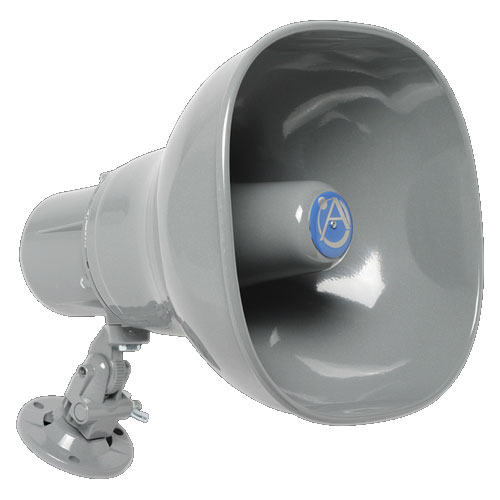

Atlas Sound AP-15TUC
Emergency Speaker Horn, 15W, 25/70.7V w/Capacitor for Line Supervision

OUR PART #:  AP-15TUC

The Atlas Sound AP-15TUC is a double re-entrant loudspeakers which delivers 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.
Learn More
Our Price: $120.99
List Price: $150.99
You save 20%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Atlas Sound AP-15TUC
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Atlas Sound AP-15TUC is a double re-entrant loudspeakers which delivers 15-watts of continuous power handling, superior intelligibility and unparalleled efficiency.

The AP-15 Series operates within a nominal frequency response range of 400-14,000 Hz and offers a sensitivity of 120dB at rated power to provide clear voice and signal communication.

The trademarked squared-bell design signifies Atlas Sound quality and reliability. The Omni-Purpose® mounting bracket (supplied on all models) achieves precise positioning in the vertical and horizontal planes with a single adjustment and includes provisions for loudspeaker installation on conventional surfaces as well as for strapmounting on I-beams or pillars.

A built-in, 5 mfd capacitor is provided for line supervision.

All models meet or exceed the UL Listed standards for audible signal appliances, standard 1480—Speakers for Fire Protective Signaling Systems and California State Fire Marshal (Title 19).

AP Series loudspeakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.

Atlas Sound AP-15TUC Features:

  • 15-Watt High Efficiency Compression Driver
  • 5 mfd Capacitor for Line Supervision
  • Built-In Vari-Tap Transformer for Easy Impedance Selection
  • Omni-Purpose Surface Mounting Bracket For Precise Positioning
  • Recommended for High Intelligibility Paging, Intercommunication, and Signaling
  • Vandal-Resistant, Weatherproof Construction
  • UL Certified, Safety Listed to UL1480

Atlas Sound AP-15TUC Specifications:

  • Frequency Response: 400 Hz - 14 kHz
  • Power Taps: 1, 2, 3.8, 7.5, 15W @ 70.7V
  • Dispersion: 70°
  • Sensitivity: 10 6dB
  • Operating Range: -40° to 70°C
  • Dimensions: 8-3/4" H x 7-7/8" W x 9-5/16" D (22.225 x 20.0025 x 23.65502 cm)
  • Shipping Weight: 5 lbs (2.27 kgs)
