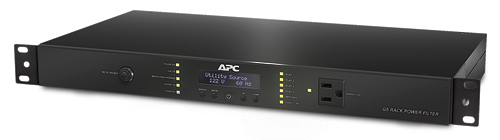

American Power Conversion G5BLK 15 Amp G-Type Rack Power Filter, 120V

The APC G5BLK is a rackmountable 15 Amp G-Type power filter that provides protection from electrical noise interference and damaging power transients. The G5BLK features LED status indicators that allows a user to quickly understand unit and power status. The LED and display also feature adjustable brightness settings to allow for dimming in a dark environment.

This unit also features isolated power filter banks which eliminate electromagnetic and radio frequency interference (EMI/RFI) as a source of audio-video signal degradation, and the sequenced on/off helps power on components in the proper order to prevent speaker stress. Proper sequencing can also help manage current draw on startup to prevent unnecessary circuit breaker tripping.

APC G5BLK Features:

• Dataline Surge Protection: Provides protection of connected equipment from power surges on the data lines.
• Power Conditioning: Protects connected loads from surges, spikes, lightning, and other power disturbances.
• Safety-Agency Approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
• Multiple Mounting Methods: Allows for standardization on one product for use in different environments.

APC G5BLK Specifications:

• Output:
  • Number of Outlets: 9
  • Receptacle Style: NEMA 5-15R
• Input:
  • Nominal Input Voltage: 120V
  • Input Frequency: 50/60 Hz
  • Input Connections: NEMA 5-15P
  • Cord Length: 8 feet (2.44 meters)
  • Maximum Input Current: 15A
  • Input Breaker Capacity: 15 A
  • Surge Protection and Filtering:
  • Surge energy rating: 3400 Joules
  • EMI/RFI Noise rejection (100 kHz to 10 MHz): 55 dB
  • Let Through Voltage Rating: < 40
• Physical:
  • Net Weight: 8.58 lbs. (3.90 kg)
  • Maximum Height: 1.71 inches (43 mm)
  • Maximum Width: 17.13 inches (435 mm)
  • Maximum Depth: 9.45 inches (240 mm)
  • Shipping Weight: 10.60 lbs. (4.82 kg)
  • Shipping Height: 3.40 inches (86 mm)
  • Shipping Width: 21.73 inches (552 mm)
  • Shipping Depth: 12.99 inches (330 mm)
  • Color: Black
• Environmental:
  • Operating Environment: 32 - 122 °F (0 - 50 °C)
  • Operating Relative Humidity: 0 - 95%
  • Operating Elevation: 0 - 10000 feet (0-3000 meters)
  • Storage Temperature: 5 - 113 °F (-15 - 45 °C)
  • Storage Relative Humidity: 0 - 95%
  • Storage Elevation: 0 - 10000 feet (0-3000 meters)
• Conformance:
  • Regulatory Approvals: UL 1449
  • Standard Warranty: Lifetime
  • Equipment protection policy: Lifetime - $450000
  • UL 1449 TVSS Rating: 330V
  • Sustainable Offer Status: RoHS Compliant
