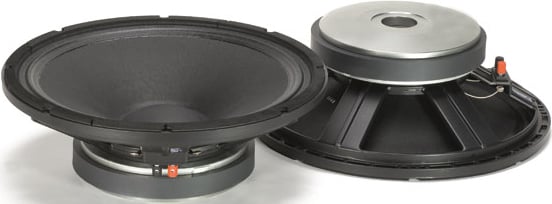

RCF L15/554K
15" Replacement Woofer

OUR PART #  L15/554K

Our Price: $349.00
List Price: $399.00
You save 13%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

RCF's L15/554K is a high efficiency mid-bass woofer with good linearity.  A Kapton formed voice coil, polycotton suspensions and treated cone guarantee the high power handling of this transducer.

Features:

  • 4" fiberglass inside/outside copper voice coil
  • 1200W continuous program power handling
  • 99 dB Sensitivity
  • 40 Hz – 2 kHz Frequency range
  • M-roll damped surround
  • Exponential damped cone
  • Copper ring

Applications:

  • The L15-554K is designed to be mounted in compact size bass reflex enclosures.
  • The combination of voice coil length, low mass weight and suspensions control makes the L15-554K a good choice for high-powered 2-way systems.
  • Thanks to a high BL/Re ratio, small mechanical depth and a strong cone, the L15-554K is good solution for horn loaded or hybrid horn loaded system.

Specifications:

  • Nominal Diameter: 15" (380 mm)
  • Rated Impedance: 8 ohms
  • Program Power: 1200 Watts AES
  • Power handling capacity: 600 Watts AES
  • Sensitivity: 99 dB
  • Frequency Range: 40 Hz ÷ 2000 Hz
  • Effective Piston Diameter: 12.8" (325 mm)
  • Max Excursion Before Damage (peak to peak): 1.73" (44 mm)
  • Minimum Impedance: 7.9 ohm
  • Voice Coil Diameter: 4" (100 mm)
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 0.6" (16 mm)
  • Number of layers: 2
  • Kind of layer: inside / outside
  • Top Plate Thickness: 0.35" (9 mm)
  • Cone Material: No pressed pulp
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: M - roll
  • Net Weight 24.9 lbs (11.3 kg)
  • Shipping Weight: 26.0 lbs (11.8 kg)

THIELE SMALL PARAMETERS

  • Resonance frequency: 35 Hz
  • DC resistance: 6.6 ohms
  • Mechanical factor: 8.6
  • Electrical factor: 0.25
  • Total factor: 0.24
  • BL Factor: 23 T · m
  • Effective Moving Mass: 91 gr
  • Equivalent Cas air load: 227 liters
  • Effective piston area: 0.083 m²
  • Max. linear excursion (mathematical): 5.8 mm
  • Voice - coil inductance @ 1kHz: 1.7 mH
  • Half-space efficiency: 3.75 %

MOUNTING INFORMATION:

  • Overall Diameter: 15.2" (387 mm)
  • Bolt Circle Diameter:  14.6" (371 mm)
  • Bolt Hole Diameter: 0.3" (6.5 mm)
  • Front Mount Baffle Cut-out: 14.1" (358 mm)
  • Rear Mount Baffle Cut-out: 14.2" (362 mm)
  • Depth: 5.4" (138 mm)
  • Volume occupied by the driver: 3.8 / 0.13 liters/ft³

RCF L15/554K
15" Replacement Woofer

OUR PART #  L15/554K

Product Information:

RCF's L15/554K is a high efficiency mid-bass woofer with good linearity.  A Kapton formed voice coil, polycotton suspensions and treated cone guarantee the high power handling of this transducer.

Features:

  • 4" fiberglass inside/outside copper voice coil
  • 1200W continuous program power handling
  • 99 dB Sensitivity
  • 40 Hz – 2 kHz Frequency range
  • M-roll damped surround
  • Exponential damped cone
  • Copper ring

Applications:

  • The L15-554K is designed to be mounted in compact size bass reflex enclosures.
  • The combination of voice coil length, low mass weight and suspensions control makes the L15-554K a good choice for high-powered 2-way systems.
  • Thanks to a high BL/Re ratio, small mechanical depth and a strong cone, the L15-554K is good solution for horn loaded or hybrid horn loaded system.

Specifications:

  • Nominal Diameter: 15" (380 mm)
  • Rated Impedance: 8 ohms
  • Program Power: 1200 Watts AES
  • Power handling capacity: 600 Watts AES
  • Sensitivity: 99 dB
  • Frequency Range: 40 Hz ÷ 2000 Hz
  • Effective Piston Diameter: 12.8" (325 mm)
  • Max Excursion Before Damage (peak to peak): 1.73" (44 mm)
  • Minimum Impedance: 7.9 ohm
  • Voice Coil Diameter: 4" (100 mm)
  • Voice Coil Material: Copper
  • Voice Coil Winding Depth: 0.6" (16 mm)
  • Number of layers: 2
  • Kind of layer: inside / outside
  • Top Plate Thickness: 0.35" (9 mm)
  • Cone Material: No pressed pulp
  • Cone Design: Curved
  • Surround Material: Polycotton
  • Surround Design: M - roll
  • Net Weight 24.9 lbs (11.3 kg)
  • Shipping Weight: 26.0 lbs (11.8 kg)

THIELE SMALL PARAMETERS

  • Resonance frequency: 35 Hz
  • DC resistance: 6.6 ohms
  • Mechanical factor: 8.6
  • Electrical factor: 0.25
  • Total factor: 0.24
  • BL Factor: 23 T · m
  • Effective Moving Mass: 91 gr
  • Equivalent Cas air load: 227 liters
  • Effective piston area: 0.083 m²
  • Max. linear excursion (mathematical): 5.8 mm
  • Voice - coil inductance @ 1kHz: 1.7 mH
  • Half-space efficiency: 3.75 %

MOUNTING INFORMATION:

  • Overall Diameter: 15.2" (387 mm)
  • Bolt Circle Diameter:  14.6" (371 mm)
  • Bolt Hole Diameter: 0.3" (6.5 mm)
  • Front Mount Baffle Cut-out: 14.1" (358 mm)
  • Rear Mount Baffle Cut-out: 14.2" (362 mm)
  • Depth: 5.4" (138 mm)
  • Volume occupied by the driver: 3.8 / 0.13 liters/ft³
