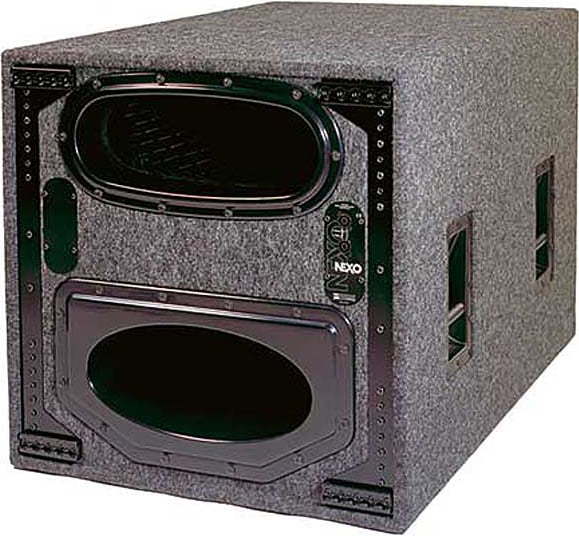

Nexo CD18-PF
GEO T Series 12" Cardioid Dipolar Subwoofer

OUR PART #:  CD18-PF

Nexo's CD18 uses an innovative approach to the control of long wavelength low frequency acoustic energy.
Learn More

Call for price! Not available online.

Similar Products

Nexo's CD18 uses an innovative approach to the control of long wavelength low frequency acoustic energy.  Sophisticated signal processing algorithms, individually applied to each of the dual-ported 18" woofers, produce substantial forward gain and more than 12 dB attenuation at the rear.  The CD18 puts subbass energy where it is needed and keeps it away from open microphones and reverberant surfaces.

Features:

  • Unique directional subbass with cardioid or supercardioid pattern keeps subbass energy away from open microphones.
  • 120° x 120° dispersion, usable output from 29 Hz to 180 Hz.
  • Dual-ported 18" woofers fire in opposite directions and are driven in reverse polarity.  Requires NX241 Digital TDController and two amplifier channels: each woofer is processed individually.
  • Internally braced Baltic Birch cabinet minimizes in-band resonances.
  • Integrated flying system for use with curved vertical tangent arrays of GEO T Series modules.
  • Cabinets designed for stable gound stacking.

Nexo has used the advanced DSP power of the digital NX242 TDcontroller to develop a compact and efficient method for controlling the dispersion of very large acoustical waves.

The CD18 uses a pair of long excursion neodymium 18" drivers, 2 amplifier channels and 2 channels of DSP processing to generate a cardioid or supercardioid pattern with up to -15dB of attenuation at the rear.  Yet, the enclosure is no larger than is required for proper loading of the transducers.

The CD18 delivers high-impact subbass energy to the audience while keeping very low frequencies away from open microphones and reflective/reverberant surfaces.  The end result is a much more controlled and coherent foundation for the mix, as compared with conventional subwoofers.

Additional Features:

  • Components: 2 x 18" (46cm) long excursion neodymium 8 Ohm drivers
  • Dimensions: 29.5" H x 47.25" W x 29.5" D (750 x 1200 x 750 mm)
  • Shape: Rectangular
  • Net Weight: 256 lbs (116 kg)
  • Connectors: 2 x NL4MP SPEAKON 4 pole (In & Through)
  • Construction: Baltic birch ply finish with structured black coating.
  • Flying points: Integral flying system.

System Specifications (with NX241 TDController - SOLD SEPARATELY):

  • Frequency Response @-3dB*: 32 Hz – 80 Hz
  • Usable Range @-6dB*: 29 Hz – 180 Hz
    *Response curves and data: anechoic far field above 400 Hz, half-space anechoic below 400 Hz.  Usable range data: frequency response capability with TD crossover slopes removed.
  • Sensitivity 1W @ 1m**: 105 dB SPL Nominal
  • Peak SPL @ 1m**: 145 dB Peak
    **Sensitivity & peak SPL: will depend on spectral distribution.  Measured with band limited pink noise.  Refers to the specified +/- 3 dB range.  Data are for speaker + processor + recommended amplifier combinations.
  • Dispersion***: Cardioid or supercardioid pattern over the entire useable bandwidth depending on the NX241 Digital TDController set up.(two channels of the NX241 are used for the process).
  • Directivity Index***: Q=4.3 | DI=6.3 dB and Q=5.3 | DI=7.2 dB over theentire useable bandwidth for respectively cardioid and supercardioidmode.
    ***Directivity curves and data: 1/3 octave smoothed frequency response, normalized to on-axis response.  Data obtained by computer processing of off-axis response curves.
  • Crossover Frequency: 80 Hz active through NX241 Digital TDController.
  • Nominal Impedance: 2 x 8 Ohms
  • Recommended Amplifiers: 2 amplifier channels are required for cardioidoperation, each rated at 1500 to 3000 Watts into 4 ohms
    per channel. Up to 2 complete CD18s per channel may be connected to a two channelsamplifier.

System Operation:

  • Electronic Controller: The NX241 Digital TDController presets are precisely matched to the CD18 and include sophisticated protection systems.  Using CD18 sub-bass without a properly connected NX241 Digital TDController will result in poor sound quality and can damage components.
  • Speaker Cables: The front loudspeaker of the CD18 is wired 2+ & 2- while the rear loudspeaker is wired 1- & 1+.  The CD18 must use separate cables to the main system.
  • Rigging System: Please refer to the user manual before any operation.

Shipping & Ordering:

  • Packaging: CD18s are packaged individually. Order as CD18-C (finished in grey carpeting) or CD18-P (finished in black structured coating).
  • Shipping Weight & Volume: 1x CD18 = 131.5 kg (263 lbs), 0.98 cu m(34.4 cu ft)
