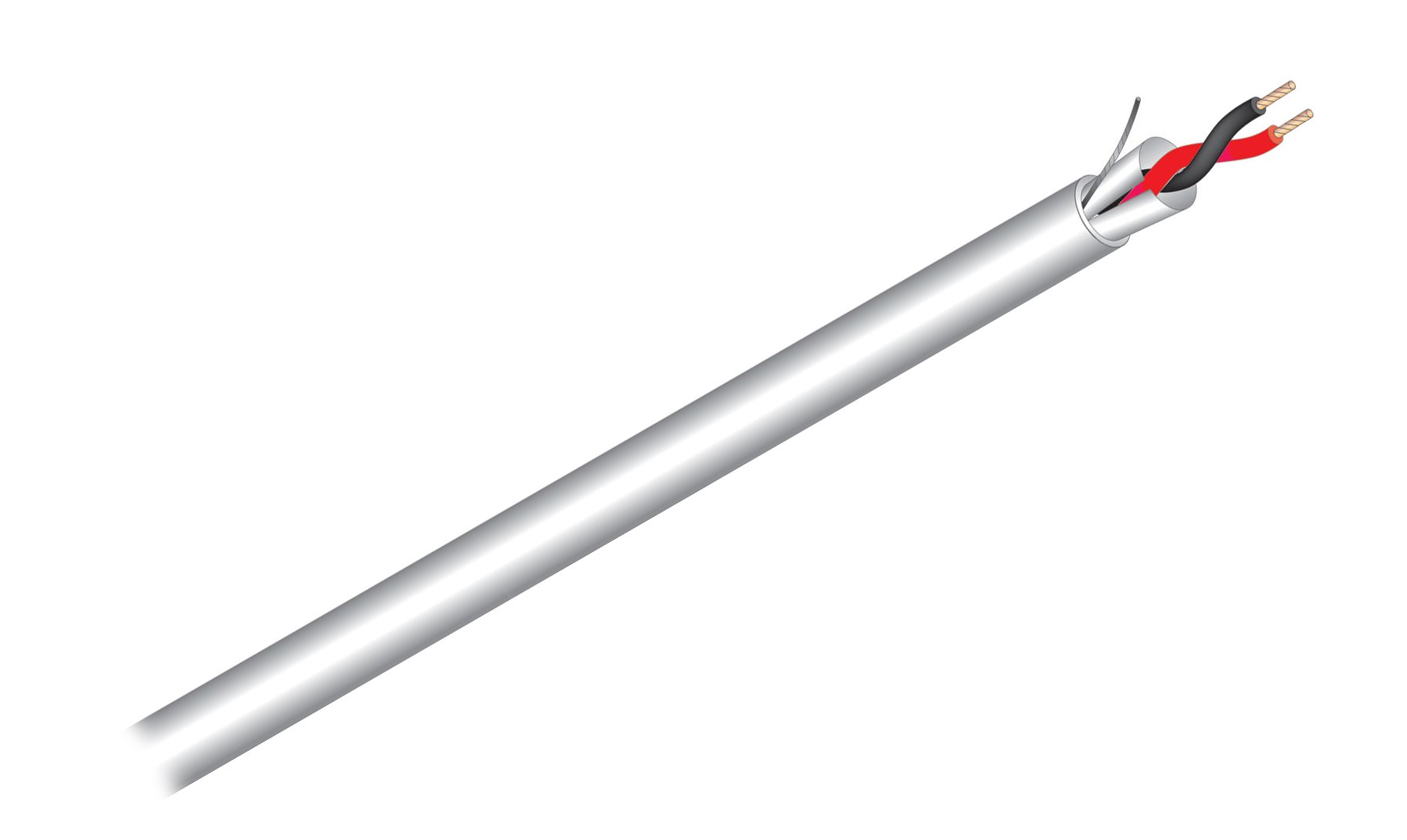

West Penn 294-1000-GRAY-WP
Wire, 1000' Spool, 2 Conductor, 16 Gauge, Stranded, Jacket

OUR PART #  294-1000-GRAY-WP

Our Price: $209.11
List Price: $349.80
You save 40%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

This 16 gauge, 2 conductor, shielded wire is ideal for indoor applications like intercom, security, sound, audio, background music and power limited control circuits. It features a PVC jacket and comes on a 1,000' spool.

Specifications

  • Conductor: 16 AWG Tinned Copper
  • Stranding: 19x29
  • Insulation Material: PVC
  • Insulation Thickness: 0.010" Nom.
  • Number of Conductors: 2
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.015" Nom.
  • Overall Cable Diameter: 0.182" Nom.
  • Approximate Cable Weight: 30.1lbs/1M' Nom.
  • Flame Rating: UL 1666 Riser Flame Test
  • Temperature Rating: -4°F to 140°F
  • Operating Voltage: 300V RMS
  • Max. Capacitance Between Conductors @ 1kHz: 90pf/ft Nom.
  • Capacitance Between Conductors to Sheild @ 1kHz: 144pf/ft Nom.
  • DC Resistance Per Conductor @ 68°F: 4.2Ohms/1M' Nom.
  • Insulation Colors: Black, Red
  • Jacket Color: Gray
  • RoHS compliant: Yes

Click to download

West Penn 294-1000-GRAY-WP
Wire, 1000' Spool, 2 Conductor, 16 Gauge, Stranded, Jacket

OUR PART #  294-1000-GRAY-WP

Product Information:

This 16 gauge, 2 conductor, shielded wire is ideal for indoor applications like intercom, security, sound, audio, background music and power limited control circuits. It features a PVC jacket and comes on a 1,000' spool.

Specifications

  • Conductor: 16 AWG Tinned Copper
  • Stranding: 19x29
  • Insulation Material: PVC
  • Insulation Thickness: 0.010" Nom.
  • Number of Conductors: 2
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.015" Nom.
  • Overall Cable Diameter: 0.182" Nom.
  • Approximate Cable Weight: 30.1lbs/1M' Nom.
  • Flame Rating: UL 1666 Riser Flame Test
  • Temperature Rating: -4°F to 140°F
  • Operating Voltage: 300V RMS
  • Max. Capacitance Between Conductors @ 1kHz: 90pf/ft Nom.
  • Capacitance Between Conductors to Sheild @ 1kHz: 144pf/ft Nom.
  • DC Resistance Per Conductor @ 68°F: 4.2Ohms/1M' Nom.
  • Insulation Colors: Black, Red
  • Jacket Color: Gray
  • RoHS compliant: Yes

Click to download
