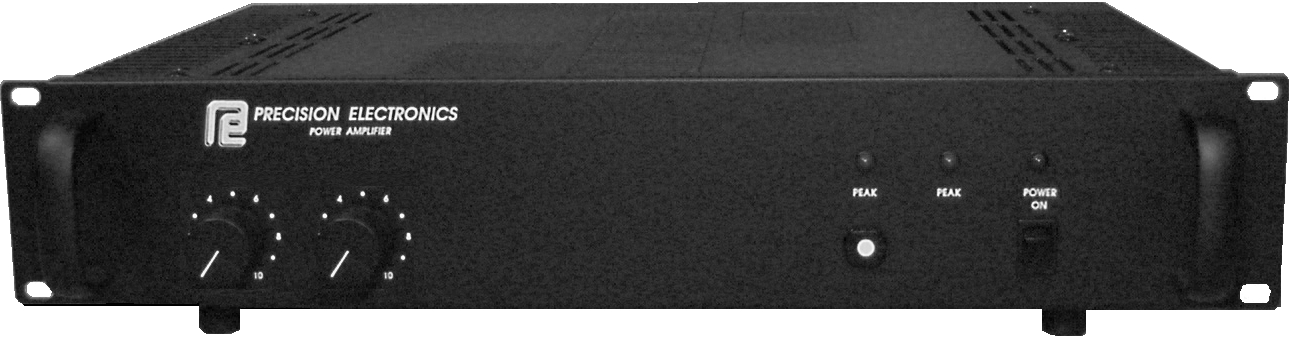

Grommes-Precision AX2BY125 2.5 Input Channel Mixer Amplifier, 125 watts x2

The Grommes-Precision Axiom 2 BY 125 is two high fidelity commercial audio power amplifiers in one. It delivers 125 watss of continuous RMS power separately into two individual channels, or, 250 watts RMS into a single channel into 4-8 ohm or transformer isolated 25V and 70.7V lines.

Designed for all-in-one telephone paging solutions, each channel of the Axiom 2 BY 125 offers a Hi-Z dual RCA input and a balanced 600 ohm/Tel-Page input which can mute the patched pair of Hi-Z inputs (defeatable). The 600 ohm/Tel-Page level of each channel is controlled via independent tamper-resistant controls on the rear panel.

Grommes-Precision AX2BY125 Features:

• Independent 600 ohm/Tel-Page input
• Automatic activated Hi-Z muting (defeatable)
• Built tough: multiple protections including relay, short circuit, and A/C circuit breaker
• Heavy duty power supply designed for continuous operation
• 25V and 70.7 built-in output transformer
• Slim 2U rack design
• Rack mount standard
• Convection cooled
• 5-year warranty

Grommes-Precision AX2BY125 Specifications:

• Power Output RMS: Dual 125W
• Mixing Channels: 2.5
• Distortion @RPO: < 0.15%
• Outputs: 4-8ohm / 25V-70.7V Line
• Frequency Response Direct: +/- 1dB 20-20kHz
• Frequency Response Line: +/- 1dB 50-15kHz
• Inputs: 2-AUX in parallel; 1-600 ohm/Tel-Page
• Dimensions (WxHxD): 19" x 3.5" x 11"
