Chandler LTD1-MICPREAMP/EQ Equalizer Pre Amp, Single Channel, *Power Supply NOT Included

OUR PART #: LTD1-MICPREAMP/EQ MFR #: LTD-1 Mic Preamp/EQ

Copied to clipboard

The Chandler Limited LTD-1 is a hand wired 10-series equalizer and pre amp that has been handmade using parts and build techniques from the original manufacture of the modules. ...Read more

Chandler LTD1-MICPREAMP/EQ Equalizer Pre Amp, Single Channel, *Power Supply NOT Included Image 1
Chandler LTD1-MICPREAMP/EQ Equalizer Pre Amp, Single Channel, *Power Supply NOT Included
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

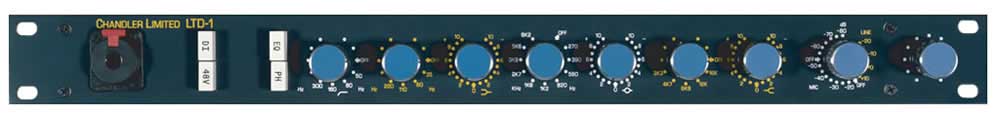

The Chandler Limited LTD-1 is a hand wired 10-series equalizer and pre amp that has been handmade using parts and build techniques from the original manufacture of the modules. Grounding, wiring techniques, original transformers, transistors, inductors, and much more attribute to the special sound of these units and have been painstakingly recreated in each LTD-1.

In addition to the classic 10-series sound Chandler adds all the modern functions you expect and expand the EQ section giving you a much larger palate to choose from. Features include high impedance direct in, 48V switching, output fader, EQ in/out, phase reverse, balanced mic in, balanced line in, over built power supply to ensure maximum headroom, and nine additional EQ points.

Features

  • 48 volt switching
  • DI in/out - also acts as a mute for the mic in
  • EQ in/out
  • Phase reverse
  • Filter
    • This is a high pass characteristic at 300Hz, 160Hz, 80Hz and 50Hz. These are the same settings as the vintage modules.
  • Low EQ
    • This is a low-end shelving characteristic with four selections - 220Hz, 110Hz, 60Hz, 35Hz. These are the same as found on classic 10-series.
  • Mid EQ
    • This is a mid-frequency peaking characteristic with ten selections. 270Hz, 390Hz, 560Hz, 820Hz, 1k2, 1k8, 2k7, 3k9, 5k6, 8k2 (classic 10-series had 360Hz, 700Hz, 1k6, 3k2, 4k8, 7k2).
  • High EQ
    • A high end shelving characteristic with five selections - 16k, 12k, 6k8, 4k7, 3k3 (classic 10-series had only 12k).
  • Mic/Line Input Sensitivity
    • 20-80dB mic gain. -10 to +20dB line.
  • Output
    • This functions as the fader on a mixing console. Use it to adjust between the 5dB steps of the input or to run the input hot without distorting your recorder (for extra coloration).

Note

*Power Supply NOT included. Requires Chandler PSU-1 power supply.
