Chandler CURVE-BENDER Equalizer, Based on EMI TG12345, 2 Channel, 4 Band Parametric, *Power Supply NOT Included

OUR PART #: CURVE-BENDER MFR #: Curve Bender EQ

Copied to clipboard

The EMI TG12345 Curve Bender is the ultimate TG equalizer issued in celebration of the 75th birthday of Abbey Road Studios. ...Read more

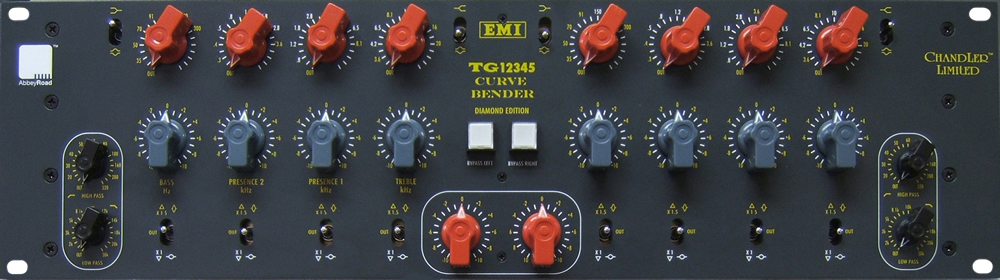

Chandler CURVE-BENDER Equalizer, Based On EMI TG12345, 2 Channel, 4 Band Parametric, *Power Supply NOT Included Image 1
Chandler CURVE-BENDER Equalizer, Based On EMI TG12345, 2 Channel, 4 Band Parametric, *Power Supply NOT Included
Our Price: $6,499.00
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 9-12 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The EMI TG12345 Curve Bender is the ultimate TG equalizer issued in celebration of the 75th birthday of Abbey Road Studios. The Curve Bender was conceived by Chandler Limited designer Wade Goeke and Abbey Road senior engineer Peter Cobbin and is based on the vintage EMI TG12345 desk used to record The Beatles and Pink Floyd. This newest EMI equalizer continues the tradition of EMI EQs started in 1951 with the RS56, affectionately entitled the Curve bender by EMI designers and continued with the TG12345 in 1968, and TG12412 in 1974. The newest version takes the simple but beautiful sounding TG12345 equalizer and realizes it in a fully featured and rethought package for today's use.

During his mixing of numerous Beatles related projects including Anthology, Yellow Submarine, and Imagine, Peter Cobbin thought of having a fully featured and ultimately flexible version of the original desk EQ units. After Wade presented him with a working version of the famed console EQ Pete realized his time had come and set Wade to making his unit. Peter asked for four bands and filters based on the slopes of the original desk but with overlapping and expanded choices. Wade turned the 9 selections on the vintage version into 51 EQ points plus a multiply switch that increases the boost/cut to 15dB (as well as sharpening the Q), filters, and bell/shelf selections on the high and low bands.

Features

  • 21 position gain control with +/-10 of adjustment in 1dB steps
  • Full bypass leaves germanium line driver in circuit for use as line amp/coloration tool
  • High Pass: 20, 30, 40, 50, 60, 80, 100, 160, 200 and 320 Hz at a gentle 6dB/octave
  • Low Pass: 30k, 20k, 18k, 14k, 10k, 8.1k, 5k, 3k and 2kHz at a gentle 6dB/octave
  • Multiply Switch: Selects between 10 or 15dB of control and changes Q, and also has a bypass selct for each band.
  • Bass: 35, 50, 70, 91, 150, 200, 300Hz. Bell or shelf selection. +/-10 or +/-15dB boost and cut. +/-15 boost/cut also sharpens Q on bell curves. Individual bypass.
  • Presence: 2- .3, .5, .8, 1.2, 1.8, 2.8, 3.6 kHz. Bell curves at +/-10 or +/-15dB boost and cut. +/-15 boost/cut also sharpens Q on curves. Individual bypass.
  • Presence: 1-, .8, 1.2, 1.8, 2.8, 3.6, 4.2, 6.5, 8.1 kHz. Bell curves at +/-10 or +/-15dB boost and cut. +/-15 boost/cut also sharpens Q on curves. Individual bypass of band.
  • Treble: 3.6, 4.2, 6.5, 8.1, 10, 12, 16 and 20 kHz. Bell or shelfselection. +/-10 or +/-15 dB boost and cut. +/-15 boost/cut also sharpens Q onbell curves. Individual bypass.

Note

*Power Supply NOT included. Requires Chandler PSU-1 power supply.
