Chandler Limited ZENER-LIMITER
Zener Limiter, TG12413, 2 Channel, *Power Supply NOT Included

OUR PART #:  ZENER-LIMITER

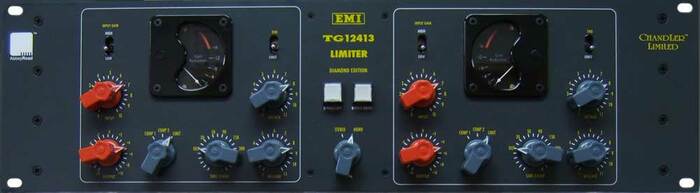

The EMI TG12413 Zener Limiter is the ultimate TG Limiter issued in celebration of the 75th birthday of Abbey Road Studios.
Learn More
Our Price: $4,960.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Chandler Limited ZENER-LIMITER
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The EMI TG12413 Zener Limiter is the ultimate TG Limiter issued in celebration of the 75th birthday of Abbey Road Studios. The Zener Limiter was conceiverd by Chandler Limited designer Wade Goeke and is based on the vintage EMI circuits used to record The Beatles and Pink Floyd. This newest EMI Limiter continues the tradition of EMI Limiters started in 1956 with the RS114 tube limiter, and continued with the RS168 Zener Limiter in 1966, part of the TG12345 console channel in 1968 and TG12413 in 1974. The newest version borrows from the RS168 Zener Limiter and TG12345 console strip to make a new fully featured and flexible unit for modern use. It is interesting to note that the TG Limiter was originally designed to replace both the Fairchild 660 (Limit Mode) and the Altec 436/RS124 (Comp 1 Mode).

The main reason for Zener Limiter reissue was to add features and flexibility to the powerful and vintage sounding TG limiter circuits. To that end Wade has added many new controls including switchable input impedance for hard or soft driving of the unit, 11 position attack, 21 position release, side chain filtering, and Comp1, Comp2, and Limit settings.

A simple Limiter from the rich past of EMI and Abbey Road has now come full circle into a modern powerhouse suitable for recording, mixing, and mastering. The rest is New Chandler Limited/EMI/Abbey Road history.

Features

  • Input Impedance
    300/1200 switchable. Drives the input circuit at +6 or +12 dB for harder or softer limiting action.
  • 21 position input switch with audio taper
  • 21 position output switch in 1dB steps. +/-10dB of level control.
  • Side chain filter
    This extremely useful feature allows the TG to be used anywhere. Extreme kick and snare or entire mixes are easily processed. 30, 50, 90, 150, 300Hz.
  • Release
    Limit: 10, 25, 50, 65, 75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 625, 750 ms, and 1, 1.25, 1.5 and 2 seconds.
    Comp 1: 10, 25, 50, 65, 75, 100, 125, 150, 200, 250, 300, 350, 400, 450, 500, 625, 750 ms, and 1, 1.25, 1.5 and 2 seconds.
    Comp 2: 60, 125, 250, 375, 425, 545, 700, 850 ms, and 1, 1.2, 1.6, 2, 2.25, 2.5, 2.8, 3.5, 4.25, 5, 7.1, 8.5 and 10 seconds.
  • Hard wire bypass.
  • Stereo link.
  • Limit, Comp 1, Comp 2
    Choose between Limit and fast and slow comp modes.
  • THD Function
    Bypasses the Limiter and drives the circuit to 2% THD and higher.
  • Attack
    Limit: 5, 8, 12, 18, 25, 37, 50, 62, 75, 87, 100 ms.
    Comp 1: 5, 8, 12, 18, 25, 37, 50, 62, 75, 87, 100 ms.
    Comp 2: 28, 47, 68, 100, 125, 210, 285, 350, 425, 495, 570 ms.

*Power Supply NOT included. Requires Chandler PSU-1 power supply.

1.5A Power Supply
Chandler Limited PSU-1 1.5A Power Supply
This 1.5 Amp power supply can power 2 Chandler units.
