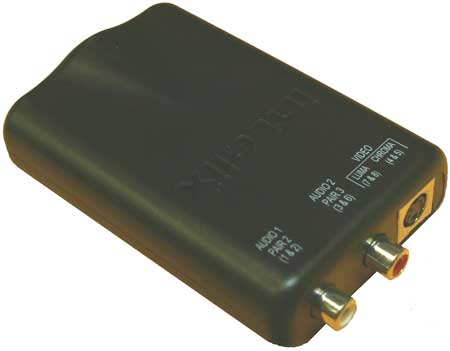

Intelix AVO-SVA2-F
S-Video and Stereo Audio Balun

OUR PART #:  AVO-SVA2-F

Intelix's AVO-SVA2-F balun is an ideal solution for transmitting s-video and ultra-high quality stereo audio up to 1000 feet over structured cabling, such as Cat 5.
Learn More
Our Price: $102.55
List Price: $113.94
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Intelix AVO-SVA2-F
Qty:
In Stock

Similar Products

Intelix's AVO-SVA2-F balun is an ideal solution for transmitting s-video and ultra-high quality stereo audio up to 1000 feet over structured cabling, such as Cat 5.  Used in pairs, AVO-SVA2-F baluns replace bulky coaxial cable and utilize a building's existing structured cabling network.

Intelix AVO-SVA2-F Balun Specifications:

  • Max Distance: 1000 feet
  • Bandwidth:
    • Video: DC to 6 MHz
    • Audio: 20 Hz to 20 kHz
  • Power: No power required
  • Video Impedance: 75 ohms
  • Audio Impedance: 600 ohms min
  • Max. Input: 1.1V p-p
  • Insertion Loss:
    • Video: Less than 2 dB per pair over the frequency range
    • Audio at 600 ohms: less than 3 dB per pair
    • Audio at 1.2 kOhms:less than 1.9 dB per pair
  • Return Loss: Better than 15 dB over the frequency range
  • Common Mode Rejection: Greater than 40 dB over the frequency range
  • Cable: Cat 5, Cat 5e, Cat 6, and Cat 7 compatible
  • Connectors: One (1) female 4-pin mini DIN, two (2) RCA audio jacks, and one (1) RJ45
  • Enclosure: Black plastic
  • Dimensions: 4.3" x 2.5" x 1.0"
  • Shipping Weight: 0.5 lbs.
  • Pin Out:
    • S-Video Luma: 7 & 8, pair 4
    • S-Video Chroma: 4 & 5,pair 1
    • Audio Channel 1:  1 & 2, pair 2
    • Audio Channel 2: 3 &6, pair 3
  • Temperature:
    • Operating: 32° to 131° F
    • Storage: -4° to 185° F
    • Humidity: up to 95%
  • Warranty: 2 years
