Lexicon PCM92
Stereo Reverb/Effects Processr

OUR PART #:  PCM92

Our Price: $1,799.00
List Price: $2,249.00
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

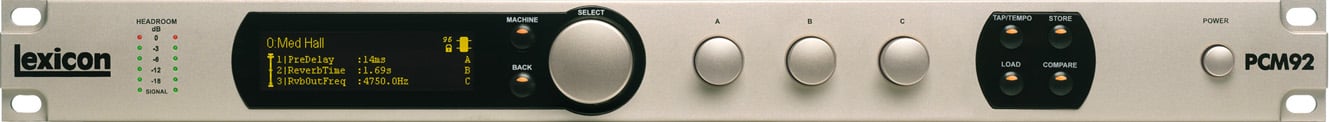

Lexicon PCM92
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Lexicon's PCM92 uses the latest DSP technology and the finest collection of classic Lexicon algorithms to offer an audio processor well-suited for live sound and studio applications.  The PCM92 delivers 28 mono and stereo reverbs, delays, and modulation effects, flexible routing configurations, and a comprehensive collection of over 1200 finely-crafted presets, including recognizable classics from our immense library of sounds.

Features:

  • 28 Lexicon® studio-standard reverbs, delays, and modulation effects
  • Comprehensive collection of over 1200 finely crafted factory presets, including recognizable classics from Lexicon's immense library of sounds
  • Lexicon's flexible Room algorithm used to generate a vast array of room-related effects for music and film production
  • Multi-voice pitch shift to enhance vocals
  • Full system configuration and control with HiQnet™ System Architect™
  • 44.1 to 96 kHz sample rate, 32-bit floating point processing
  • Two channels balanced analog I/O (XLR and 1/4")
  • Two channels XLR digital AES/EBU I/O
  • Ethernet connectivity and full MIDI control
  • External BNC Word Clock
  • Foot controller inputs make it easy to change presets and adjust parameters during live performances
  • High-resolution OLED display is easy to read in all light conditions

The PCM92 features the highly acclaimed Hall, Concert Hall and Random Hall reverb algorithms that are consistently used by live sound and recording engineers because of their exceptional ability to reproduce the musical ambience of large, wide, panoramically wonderful spaces.  In fact, these classic Lexicon Hall algorithms have been used on more than 80% of all recorded music.

Lexicon's Room algorithm offers an amazing palette of natural sounding rooms with all the inherent realism of the actual space.  Reflection patterns are easily selected, scaled, and equalized all while simultaneously passing audio and the room size can be instantly changed or reversed.  These capabilities provide a more flexible alternative to convolution type reverbs due to the precise control and manipulation that is only possible with a reverb synthesizer.

One of the stunning advances in the PCM92 is the ability to create incredibly realistic small spaces.  For both music and film production, it is often vital to have the ambience of a phone booth or very small drum room.  In the PCM92 you can create them with a reality never heard before from any processor other than a Lexicon.

In addition, the PCM92 delivers new capabilities to traditional reverbs by adding multimode filters in the audio flow.  This allows more exact shaping of the reverb while still maintaining that distinctive smooth, rich "Lexicon Sound."  Also, all reverbs have an "Infinite" switch that allows the reverb to run forever, which is useful for creating unusual backgrounds and sound effects.

Designed as a single rack space processor with two channels of balanced XLR or 1/4" analog I/O and two channels of XLR AES/EBU digital I/O, along with MIDI, Word Clock, and Ethernet, the PCM92 complements any large scale mixing console or integrates easily in your studio.

Specifications:

Analog Audio Inputs:

  • Connectors: Two XLR-1/4” TRS (combi-jack) analog balanced inputs
  • Impedance: 20k Ohm, balanced
  • Input Level:
    +4dBu mode: +20dBu max
    -10dBV mode: +8.2dBu max
    Type IV mode: +26dBu max

Analog Audio Output:

  • Connectors: Two Male XLR and Two Female 1/4" TRS
  • Impedance: 30 Ohm, electronically balanced
  • Ouput Level: +20dBu

Digital Audio I/O:

  • Connectors: One Female XLR Input / One Male XLR Output
  • Format: AES/EBU balanced
  • Conversion: 24-bit A/D; 24-bit D/A
  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Accuracy: within +/-50ppm
  • Lock Range: +/-2% of nominal

Audio Performance:

  • Frequency Response @96KHz:
    20Hz to 20kHz, +/-0.25dB
    20kHz to 40kHz, +0/-3dB
  • THD: <.003%, 20Hz to 20kHz @ +4dBu
  • Dynamic Range: >112dB unweighted, 115dB A-weighted
  • Crosstalk @ 1kHz: <-90dB, 20Hz to 20kHz @ +20dBu input
  • Internal Audio DSP: 32/64-bit floating point

Synchronization:

  • TTL Word Clock Input: 75 Ohm, BNC

Control Interface:

  • MIDI: In/Out/Thru
  • Footswitch: One 1/4" TRS connector for independent momentary footswitches
  • Foot Controller: One 1/4" TRS connector for foot pedal (100 Ohm - 10kOhm impedance)

Environment:

  • Operating: 15° to 35° C
  • Storage: -30° to 70° C
  • Humidity: 75% relative humidity max

General:

  • Rack Units: 1U
  • Dimensions: 19.0" W x 1.75" H x 9.5" D (483 x 44.5 x 241.3 mm)
  • Weight: 8 lbs
  • Power Consumption: <14W
