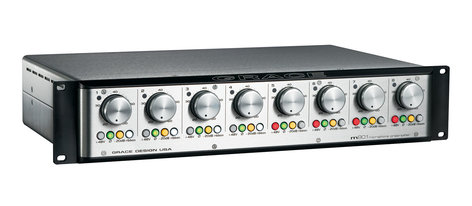

Grace Design m801
8 Channel Microphone Preamplifier

OUR PART #:  M801

Introduced in 1995, the Grace Design m801 microphone preamplifier was slightly ahead of its time.
Learn More
Grace Design EON Limited 20 Year Warranty
Grace Design m801
Grace Design m801

Click a thumbnail to see more images. (5 total)

Our Price: $4,745.00
List Price: $4,995.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Grace Design m801
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Introduced in 1995, the Grace Design m801 microphone preamplifier was slightly ahead of its time. But as digital audio workstations soon flooded the industry, an accompanying high performance 8 channel mic preamplifier suddenly made perfect sense. So the model 801 quickly became an industry standard, which remains inimitable and unsurpassed.

Many years later, with a nearly flawless service record and an endless supply of critical acclaim, the model 801 gets a much deserved update, including an updated audio path, a new chassis forged of stainless steel and a slightly new name: the m801.
First and foremost, the m801 delivers unmatched audio performance – with massive headroom and ultra-wide bandwidth which contribute to a markedly open, musical character. The m801 is designed to effortlessly resolve even the lowest level ambient information, resulting in a sonic picture of astonishing clarity and detail, which serves to capture the essential character of the music being recorded.

The m801's signal path has been hot-rodded to be fully balanced from start to finish, resulting in wider dynamic range, while new higher current output drivers enable even longer cable runs without signal loss.

Now included on each channel is a dedicated ribbon microphone switch, which shifts the preamplifier’s entire gain range up 10dB, while deactivating 48V phantom power, optimizing input impedance and bypassing the decoupling capacitors. And, Grace has added an additional set of 8 channel balanced outputs for sending signals to a secondary recorder, workstation or console.

Each channel offers 48V phantom, phase reverse and a 20dB pad. Gain controls are Grace's finest 24 position gold contact rotary switches, wired with 1% metal film resistors for maximum audio performance and perfect resetability. All components, active and passive, are selected for pure audio performance and long term reliability. No corners are cut and no compromises are made.

While its predecessor now takes its place in pro audio history, the new m801 faithfully furthers the tradition of breathtaking audio performance and perfect reliability in a beautiful, functional 8 channel package.

Grace Design m801 Features:

  • fully balanced, transformerless design
  • all new, higher-current outputs drive even longer cable runs
  • ribbon mic mode switch on each channel
  • fast, musical transimpedance amplifier architecture
  • precision 24 position gold contact rotary switch gain controls
  • 48V phantom power, 20 dB pad and phase reverse
  • no electrolytic capacitors in the signal path
  • sealed gold contact relays for all signal switching
  • all electrical and mechanical design elements maximized for absolute purist, audiophile performance
  • large two color LED peak indicator
  • regulated linear power supply with custom wound toroidal transformer
  • highest quality metal film resistors used throughout
  • Comes with Grace Design's transferrable EON Limited 20 Year Warranty!

Grace Design m801 Specifications:

FREQUENCY RESPONSE
@ 40dB gain 3dB 50ohm source  4.5Hz-350KHz
@ 40dB gain 0.2dB 50ohm source  18Hz-65KHz

THD+N
@ 20dB gain +20dBu out, 1kHz  <.0008%
@ 40dB gain +20dBu out, 1kHz  <.0009%
@ 60dB gain +20dBu out, 1kHz  <.0070%

INTERMODULATION DISTORTION
@40dB gain +20dBu out
SMPTE/DIN 1:1 (50Hz, 7kHz)  <.0020%
SMPTE/DIN 4:1 (50Hz, 7kHz)  <.0030%

NOISE - REFERRED TO INPUT
@60dB gain 50ohm source  -130dB
@60dB gain 150ohm source  -127dB
@60dB gain 600ohm source  -123dB

PHASE DEVIATION
100-20KHz @40dB gain   <3

CROSSTALK
Any Channel @40dB gain 1kHz  -140dB
Any Channel @40dB gain 10kHz  -130dB

CMRR
@60dB gain, 3.5Vcm, 1KHz  >70dB
@60dB gain, 3.5Vcm, 10KHz  >70dB

PHANTOM POWER
Voltage +48V  +0.9/ -0.0
6.8k ohm resistor match tolerance  +/- 0.1%

MAXIMUM OUTPUT LEVEL
1kHz, 100K ohm load  +28dBu

IMPEDANCE
Input  8100 ohms
Input, ribbon mode  20K ohms
Output  190ohms

DIMENSIONS
Weight  15lbs (6.8kg)
Height  2U
Width  19"
Depth  10"

m801 POWER SUPPLY SPECIFICATIONS

POWER CONSUMPTION
100-240VAC 50/60Hz  60 Watts max

DIMENSIONS
Weight  6.25lbs (2.8kg)
Height  1.7"
Width  8.5"
Depth  8.5"
