Wohler 12Ch Multiviewer


Call for price! Not available online.
List Price: $6,650.00

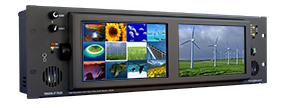

The Touch-it Plus is a multi-channel audio/video color monitor offering a simple and convenient way to monitor multi-channel CVBS (composite) analog video and audio and provide route switching in a compact size. The unit is three rack spaces (3RU) in height and installs into an industry standard 19" wide rack. The Touch- it Plus also features audio monitoring of twelve stereo analog audio inputs on DB-25 connectors, left and right internal speakers, and routing functions. The monitored audio follows the selected video output on XLR connectors. There are switches for setting audio line out logic, attenuation, and volume pre/post selection. The unit features dual high resolution color 7" LCD panels, offering video confidence monitoring for up to 12 channels of composite video. The left 7" monitor displays twelve 1.8" "thumbnail" images, and when one of these is touched, that image appears on right screen at full size and its signal is also sent to a video output BNC connector for monitoring on an external display. LCD backlights may be turned off to conserve power and backlight life leaving all other functions powered. The rear panel features twelve CVBS video inputs on BNC connectors, twelve active loop-through outputs on BNC connectors (negating the need for termination selection), and two selected video outputs on BNC connectors. The included external power supply is plugged into the unit via industry standard DIN connector.


  • Rack Height: 3RU
  • Weight: 13lbs (5.9kg)
  • Dimensions: 5.25" x 19" x 4.25" (134 x 439 x 108mm)
  • Power Consumption: 40W
  • Signals Monitored: Analog
  • Analog Inputs: 12 CVBS Inputs on BNC; 12 Pairs of Balanced Analog Inputs on DB-25 x 3
  • Analog Outputs: 12 CVBS Loop-Through Video Outputs on BNC; 2 CVBS Outputs form Selected Source on BNC; 2 Balanced AN
  • Number of Displays: 2
  • Display Size: 7.0" Diagonal
  • Display Characteristics: High Resolution TFT LCD, Transmissive
  • Display Modes: NTSC/PAL Auto-Sensing
  • Active Viewing Area: 6
  • 6.1"H x 3.4"V (155 x 87mm)
  • Native Aspect Ratio: Target Screen: 16:9 & 4:3 (Selectable); Touch-Screen: 4:3
  • Resolution: 854x480
  • Viewing Angle: Top = 50; Bottom = 60; Left/Right = 65
  • Pixel Pitch: 0.0605 x 0.1815mm
  • Pixel Response: 7ms Rising (typ); 18ms falling (typ)
  • Lamp Life: 15k Hours (Average)
  • Luminance: 400 CD/M^2
  • Contrast: 450 to 1
  • Chromacity: 72% CIE 1931 color gamut
  • Color Depth: 262k colors RGB stripe
  • Aural Sound Outputs: 1/8" Stereo Headphone Jack; Integrated Speakers
