Atlas IED SD72W-KIT Ceiling Speaker Kit with the SD72W, CS95-8 and 81-8R

OUR PART #: SD72W-KIT MFR #: SD72W-KIT

Copied to clipboard

A complete and easy solution for in-ceiling loudspeaker installations. ...Read more

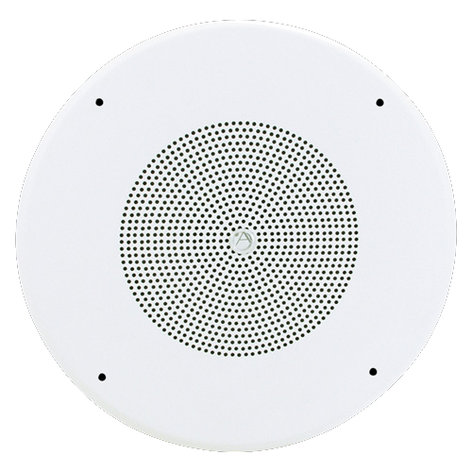

Atlas IED SD72W-KIT Ceiling Speaker Kit With The SD72W, CS95-8 And 81-8R Image 1
Atlas IED SD72W-KIT Ceiling Speaker Kit With The SD72W, CS95-8 And 81-8R
Our Price: $63.99
List Price: $75.99
You save 16%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$2/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

A complete and easy solution for in-ceiling loudspeaker installations.

The SD72WV-KIT includes products selected to work perfectly together in background music and paging applications:

SD72WV 8"" Dual-Cone In-Ceiling Loudspeaker with 25 V/70 V 5 W Transformer and 62-8 Baffle

SC95-8 8” Recessed Round Stacking Enclosure

81-8R 8” T-Bar Tile Bridge

This 25W, 8"" loudspeaker with 10oz. ceramic magnet includes a curvilinear, treated paper cone for lower harmonic distortion, and is also equipped with a full 1""-diameter copper voice coil with a black, anodized aluminum former for better power dissipation. Boasts crisp, full-range sound with a frequency response range of 45Hz-19kHz (nominal) with a sensitivity of 97dB and a dispersion angle of 105°. Includes factory installed 25/70.7V, line-matching transformer with tap selections ranging from .25W to 5W. The CS95-8 enclosure is furnished with four combination conduit knockouts 1/2"" – 3/4"", four J-clips and two flexible, perforated mounting straps. The 81-8R tile bridge is constructed of 24-gauge CRS with an electrogalvanized, rust-resistant finish.

Features

  • Convenient in-ceiling loudspeaker kit for BGM/paging applications
  • SD72WV 8" Dual-Cone Ceiling Loudspeaker
  • SC95-8 8” Recessed Round Stacking Enclosure
  • 81-8R 8” T-Bar Tile Bridge
  • 55Hz-8kHz frequency response

Specifications

  • Depth 2 7/8" (7.3025 cm)
  • Diameter 8 1/8" (20.6375 cm)
  • Shipping Weight 5.28 lbs (2.39 kgs)
  • Frequency Response 55Hz-8kHz (±5dB)
  • Power Taps .25, .5, 1, 2, 5
  • Speaker Type Treated Paper
  • Dispersion 105° (2kHz Octave Band, -6dB Points)
  • Sensitivity 97dB Average
  • UL Listed/Standard 1480, 2043
