A-Designs EM-PEQ
500 Series 1-Channel EQ Module

OUR PART #:  EM-PEQ

A 500-Series module that captures the essence of the classic Pultec EQP-1A sound.
Learn More
Our Price: $1,045.00
List Price: $1,175.00
You save 11%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

A-Designs EM-PEQ
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A 500-Series module that captures the essence of the classic Pultec EQP-1A sound.  One of the most venerated equalizers of all time, the all-tube Pultec EQP-1A has been cherished by recording and mastering engineers for its almost magical ability to improve the sound of nearly any signal running through it.  Now, after considerable research and development, the A- Designs Audio EM-PEQ has captured the essence of the highly revered Pultec EQP-1A and placed it in the compact and popular 500-Series form*—with no compromise in sonics or build quality.  Along with modern performance enhancements, the A-Designs Audio EM-PEQ meticulously maintains the EQ-section design and control layout of the original Pultec EQP-1A, as well as its wonderfully smooth musicality.  It also has the same frequency settings and inductors that made the Pultec a must-have for capturing the bottom end.  Makeup amplification is achieved through the use of the same discrete Class AB amplifier found in A-Designs Audio's immensely popular solid-state Pacifica mic preamp—putting a slightly unique and modern twist on the classic design of yesteryear.

*The EM-PEQ is an approved API™ VPR Alliance product and may also be used in Brent Averill Enterprises racks, and the 2-bay A-Designs Audio's 500 HR power supply/rack.  The EM-PEQ requires 48V to operate.  Please check your power rack for this feature before purchasing an EM-PEQ.

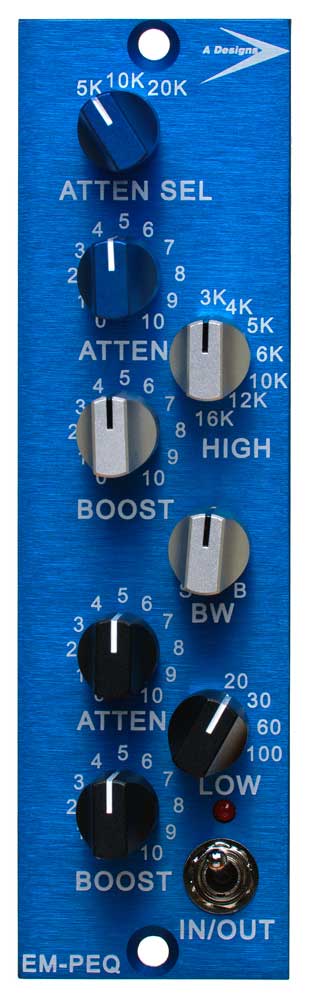

The EM-PEQ's controls attenuate high band at 5k, 10k, 20kHz; vary bandwidth AND boost mid to high band at 3k, 4k, 5k, 6k, 10k, 12k, 16kHz; and boost or attenuate the low band at 20Hz, 30Hz, 60Hz, or 100Hz.  Boost and attenuation range from 0dB to ±10dB.

Additional features of the EM-PEQ include a nickel-core output transformer, gold Grayhill rotary switches, Wima caps, and a true hard-wired bypass.  Plus, instead of using common off-the-shelf chokes, A-Designs uses a custom tapped inductor, wound to the original values as the original Pultec.  Along with the classic EQ circuitry, layout, and exceptionally musical sound of the classic Pultec, the EM-PEQ offers fully balanced, noise-free performance and modern impedance specs for easy operation and fast studio integration.

In the world of pro audio recording, there are two types of equalizers: those that you don't want to hear in action ("surgical or corrective" EQ), and those that you do ("color, or character" EQ).  The EM-PEQ is one you most definitely do.  Unlike any other 500-Series equalizer, the A-Designs EM-PEQ sits on the extreme end of the "character" bench.  It focuses on "correcting" that which cannot be fixed by so-called surgical EQs: the enhancement of tone and musicality.

The EM-PEQ is also available as the EM-EQ2, a 2-channel, 2RU rackmount version offered at the same price as two EM- PEQs and a 500HR power rack.  Whether you prefer to work with the 500-Series form factor or standard rackmount format, both the EM-PEQ and EM-EQ2 are identical in both sound quality and functionality.

EM-PEQ Features:

  • The first and onlyPultec-style equalizer in the 500-Series format
  • Three-band EQ with the same control layout as original Pultec
  • Fully balanced, noise-free performance and modern impedance specs
  • Same frequency settings and inductors as original Pultec make it a must-have for capturing bottom end
  • Excels at tracking, mixing and mastering
  • Perfectly compatible with API lunchbox (or A-Designs 500HR rack)
  • True hard-wired bypass
  • A-Designs proprietary-wound tapped Inductor
  • A-Designs proprietary nickel alloy output transformer
  • Quick and easy studio integration
  • Wima capacitors
