Speco Technologies CVC695AM
Color Angle Mount Camera

OUR PART #  CVC695AM

Our Price: $533.00
Usually ships in 7-14 business days.
Need it sooner? Call us!

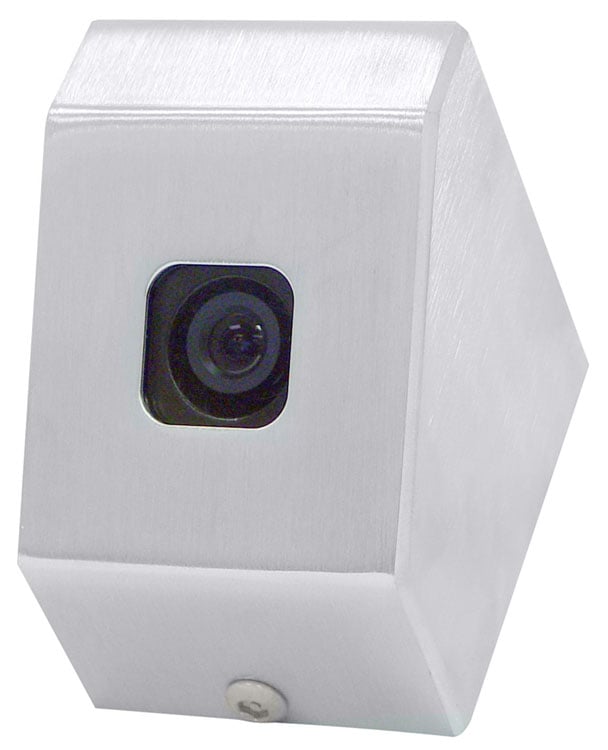

The CVC695AM is a 1/4" color CCD angle mount camera is weather resistant and is encased in an 18 gauge tamper-resistant stainless steel housing. It has a 1.0 lux with 420 line resolution. It features a 3.6mm wide angle lens that views at a downward angle of at 38 degrees. It uses an RCA female video output. A tamperproof screw for vandal resistant mounting, BNC adaper and 12V DC power supply are included. A B/W version of this camera can be found under model number CVC95AM.

Specifications:

  • Dimensions: 2.5"L x 2.25"W x 2.75"H
  • Electronic Shutter: auto 1/60-1/100,000 second
  • Housing: 18 gauge stainless steel
  • Humidity: within 95 % RH
  • Image Device: 1/4
  • Lens: 3.6mm, Hor. 72º, Vert. 53º
  • Lens Options: 6, 8mm
  • Minimum Illumination: 1.0 lux F 1.6
  • Number of Pixels: 512 horizontal x 492 vertical
  • Operating Temperature: 14º F - 122º F
  • Outputs: Video - RCA with BNC adapter, power - DC jack
  • Power Consumption: 210 mA
  • Power Supply: regulated 12V DC power supply inlcuded (PSW-5) (UL and CSA listed)
  • Scanning Frequency: horizontal 15.75 kHz vertical 60 Hz
  • Scanning System: NTSC color 525 line 60 fields/second
  • Video Output Level: 1.0 Vp-p 75 ohm
  • Video S/N Ratio: greater than 46 dB
  • Weight: 6.8 oz
  • Resolution: 420 lines
