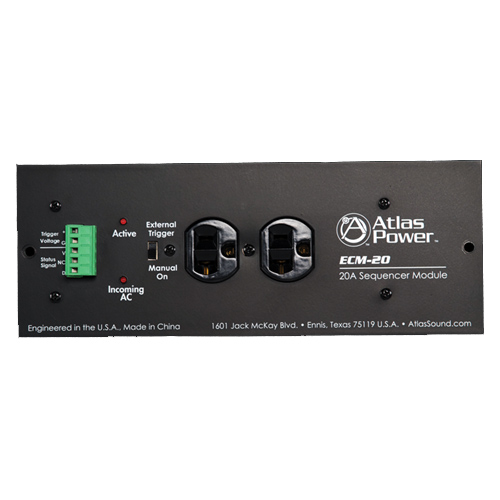

Atlas IED ECM-20 20A AC Power Conditioner and Spike Supressor

The Atlas Sound ECM-20 is a 20A Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an ECS unit up to 1000ft away. The ECM-20 features AC Spike and Surge Suppression, AC Mains Voltage monitoring, EVS circuitry, and Remote Activation.

The ECM-20 is designed to be conveniently housed in the ECM-RACEWY6 for the addition of multiple outlets directly connected to the AC mains from the electrical panel.

Atlas Sound ECM-20 Features:

• 2 Outlets, 20A
• Manual/Auto On/Off Switch
• Incoming AC Present LED
• Active LED
• Clamping Spike & Surge Suppression
• AC Mains Voltage Monitoring

Atlas Sound ECM-20 Specifications:

• Current Rating: 20 Amps
• Operating Voltage: 102-132VAC
• Minimum Spike Clamping Voltage: 460 VRMS @ 3000A
• Maximum Spike Clamping Voltage: 6,000V
• Power Consumption: .5 Watts
• Power Requirements: 120V 60Hz
• Dimensions (HxWxD): 3.0" x 8.5" x3.5" (76.2 x 215.9 x 88.9mm)
• Weight: 1.25 lbs. (.68 kg)
• Certifications: MET (UL 1449)
